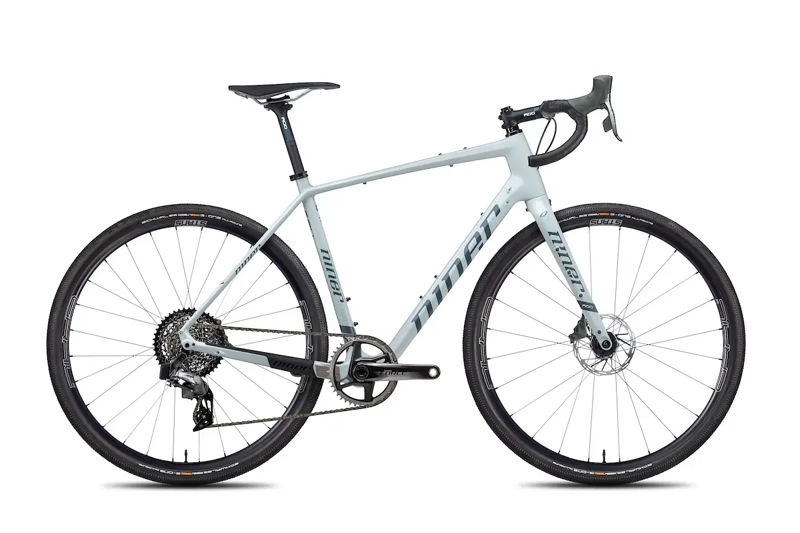

2024 Niner RLT 9 RDO geometry
Full frame geometry for the 2024 Niner RLT 9 RDO, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47cm | 535 | 362 | 74.5 | 70 | 105 | 510 | 430 | 693 | 75 | 581 | 430 | 1000 | 45 |
| 50cm | 556 | 366 | 74 | 70.5 | 125 | 525 | 460 | 731 | 75 | 589 | 430 | 1007 | 45 |
| 53cm | 577 | 374 | 73.5 | 71 | 145 | 545 | 490 | 754 | 75 | 600 | 430 | 1017 | 45 |
| 56cm | 592 | 384 | 73 | 715 | 165 | 565 | 520 | 780 | 70 | 611 | 430 | 1030 | 45 |
| 59cm | 613 | 398 | 73 | 72 | 185 | 585 | 550 | 804 | 70 | 626 | 430 | 1045 | 45 |
| 62cm | 634 | 405 | 72.5 | 72.5 | 205 | 605 | 580 | 827 | 70 | 634 | 430 | 1054 | 45 |
All measurements in millimetres unless marked (°) for angles.
