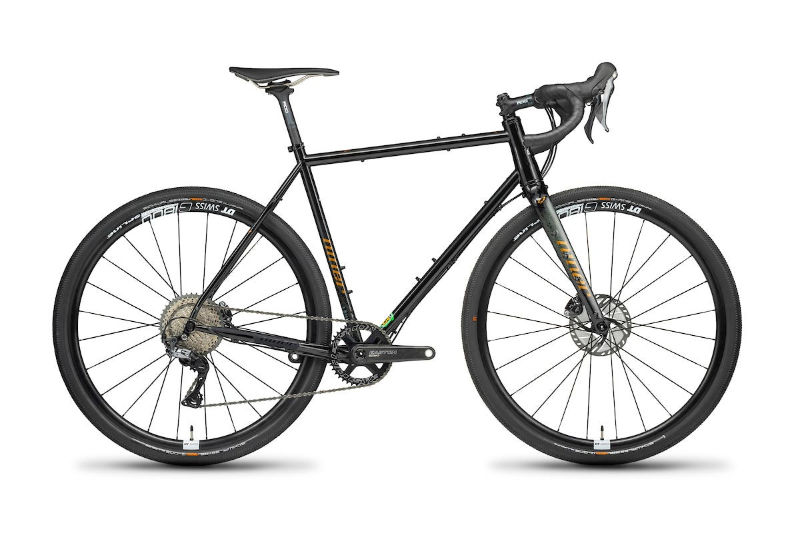

2026 Niner RLT 9 Steel geometry
Full frame geometry for the 2026 Niner RLT 9 Steel, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47cm | 543 | 365 | 74.5 | 70 | 110 | 510 | 470 | 735 | 75 | 583 | 435 | 1008 | 45 |
| 50cm | 558 | 367 | 74 | 70.5 | 125 | 525 | 500 | 757 | 75 | 589 | 435 | 1015 | 45 |
| 53cm | 579 | 375 | 73.5 | 71 | 145 | 545 | 530 | 781 | 75 | 600 | 435 | 1025 | 45 |
| 56cm | 597 | 384 | 73 | 71.5 | 165 | 565 | 560 | 809 | 70 | 611 | 435 | 1038 | 45 |
| 59cm | 615 | 398 | 73 | 72 | 185 | 585 | 590 | 835 | 70 | 626 | 435 | 1053 | 45 |
| 62cm | 636 | 406 | 72.5 | 72.5 | 205 | 605 | 620 | 860 | 70 | 635 | 435 | 1062 | 45 |
All measurements in millimetres unless marked (°) for angles.
