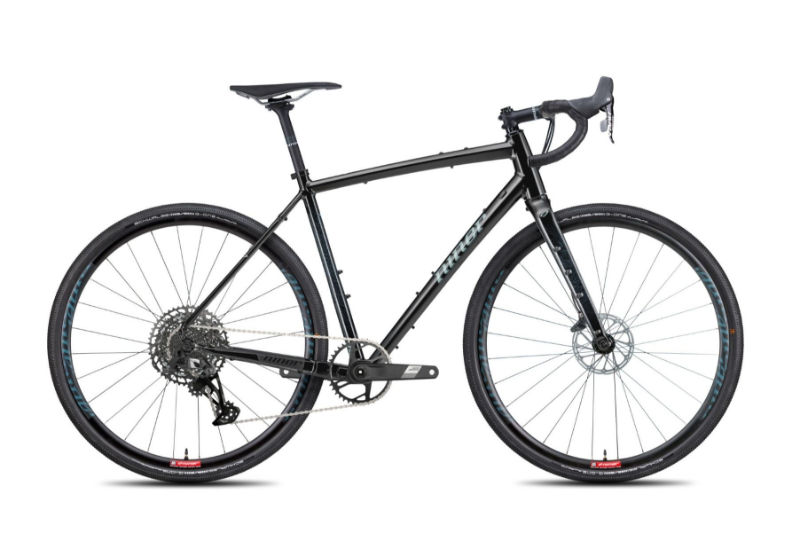

2026 Niner RLT 9 geometry
Full frame geometry for the 2026 Niner RLT 9, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47cm | 537 | 361 | 74.5 | 70 | 105 | 510 | 430 | 705 | 75 | 582 | 435 | 1005 | 45 |
| 50cm | 558 | 365 | 74 | 70.5 | 125 | 525 | 460 | 728 | 75 | 589 | 435 | 1012 | 45 |
| 53cm | 578 | 374 | 73.5 | 71 | 145 | 545 | 490 | 753 | 75 | 599 | 435 | 1023 | 45 |
| 56cm | 594 | 383 | 73 | 71.5 | 165 | 565 | 520 | 780 | 70 | 610 | 435 | 1036 | 45 |
| 59cm | 615 | 397 | 73 | 72 | 185 | 585 | 550 | 805 | 70 | 625 | 435 | 1051 | 45 |
| 62cm | 636 | 407 | 72.5 | 72.5 | 205 | 605 | 580 | 830 | 70 | 634 | 435 | 1060 | 45 |
All measurements in millimetres unless marked (°) for angles.
