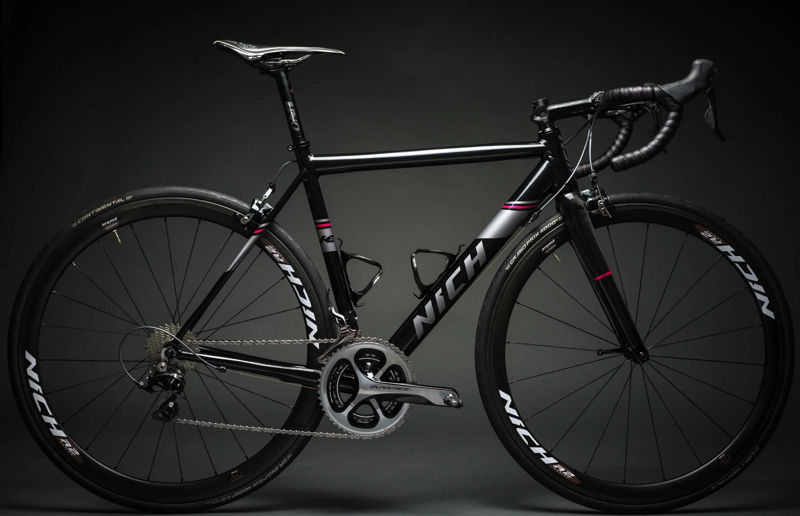

2016 Nich Kem geometry
Full frame geometry for the 2016 Nich Kem, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XXS (42) | 497.3 | 360 | 74.5 | 69 | 105 | 498 | 70 | 405 | 969.1 | 43 |
| XS (46) | 506.1 | 370.8 | 74.5 | 71.5 | 105 | 510 | 70 | 405 | 964.8 | 43 |
| S (50) | 520.3 | 374.7 | 74 | 71.5 | 120 | 520 | 70 | 405 | 965.7 | 43 |
| M (52) | 534.1 | 378 | 74 | 72.5 | 131 | 530 | 70 | 405 | 968.4 | 43 |
| L (54) | 553.3 | 379.3 | 73.8 | 72.8 | 150 | 540 | 70 | 405 | 972.2 | 43 |
| XL (56) | 568.3 | 381.7 | 73.5 | 73 | 165 | 550 | 70 | 405 | 977.9 | 43 |
All measurements in millimetres unless marked (°) for angles.
