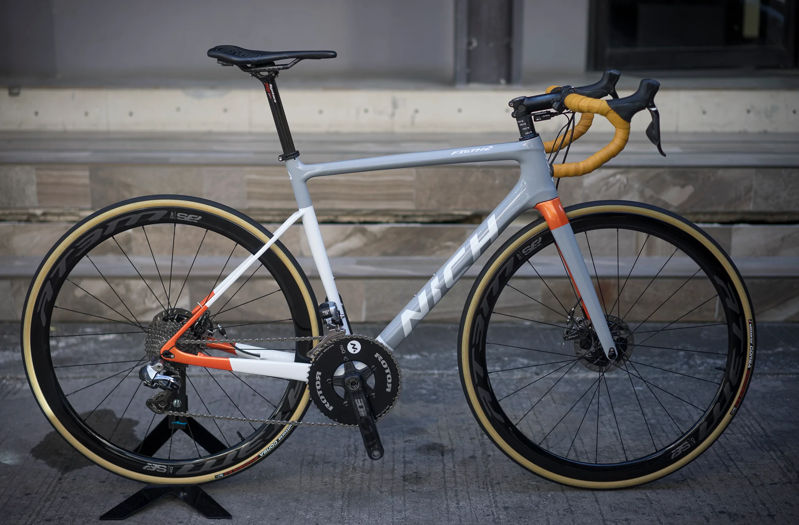

2022 Nich Faith2 geometry
Full frame geometry for the 2022 Nich Faith2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS(48) | 511 | 368 | 74.5 | 71 | 110 | 510 | 465 | 72.5 | 406 | 966 | 45 |
| S(50) | 529 | 373 | 74 | 72 | 125 | 525 | 500 | 70 | 406 | 968 | 45 |
| M(52) | 544 | 378 | 74 | 73 | 140 | 535 | 525 | 70 | 406 | 970 | 45 |
| L(54) | 563 | 386 | 73.5 | 73 | 160 | 553 | 545 | 70 | 406 | 982 | 45 |
| XL(56) | 584 | 396 | 73.5 | 73.5 | 180 | 570 | 565 | 70 | 406 | 996 | 45 |
| XXL(58) | 608 | 404 | 73.5 | 73.5 | 205 | 585 | 585 | 70 | 406 | 1011 | 45 |
All measurements in millimetres unless marked (°) for angles.
