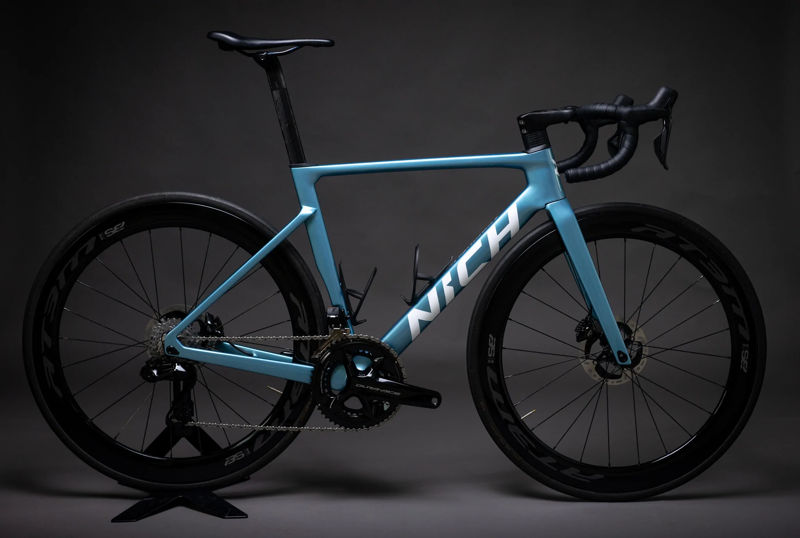

2022 Nich Legend 4 geometry
Full frame geometry for the 2022 Nich Legend 4, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 500 | 370 | 75 | 70.8 | 102 | 505 | 430 | 71 | 571 | 408 | 966 | 45 |
| XS | 512 | 376 | 74.5 | 71.4 | 112 | 520 | 460 | 71 | 576 | 408 | 972 | 45 |
| S | 530 | 383 | 74 | 72 | 127 | 535 | 490 | 71 | 583 | 408 | 981 | 45 |
| M | 549 | 390 | 73.5 | 73 | 147 | 550 | 520 | 70 | 588 | 408 | 985 | 45 |
| L | 571 | 397 | 73 | 73 | 167 | 570 | 550 | 70 | 601 | 408 | 999 | 45 |
| XL | 595 | 404 | 72.5 | 73 | 192 | 590 | 580 | 70 | 615 | 408 | 1012 | 45 |
All measurements in millimetres unless marked (°) for angles.
