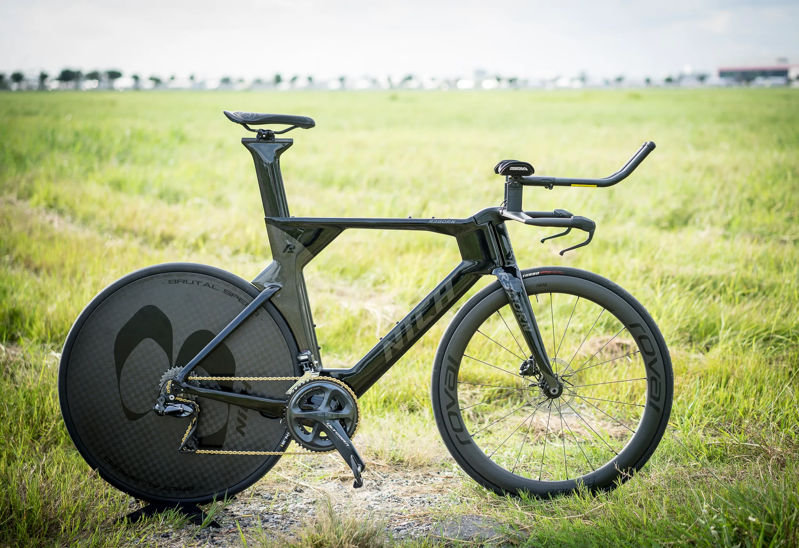

2022 Nich Reborn3 geometry
Full frame geometry for the 2022 Nich Reborn3, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 464 | 381.2 | 78 | 71 | 61.3 | 479.8 | 460 | 720 | 75 | 573 | 400 | 960 | 50 |
| S | 475 | 401.8 | 78 | 72 | 67.2 | 502.9 | 495 | 750 | 75 | 584 | 400 | 971 | 45 |
| M | 506 | 421.5 | 78 | 72.5 | 97 | 528.8 | 526 | 780 | 75 | 609 | 400 | 996 | 45 |
| L | 535 | 446.3 | 78 | 72.5 | 128.5 | 560.1 | 557 | 810 | 75 | 643 | 400 | 1030 | 45 |
All measurements in millimetres unless marked (°) for angles.
