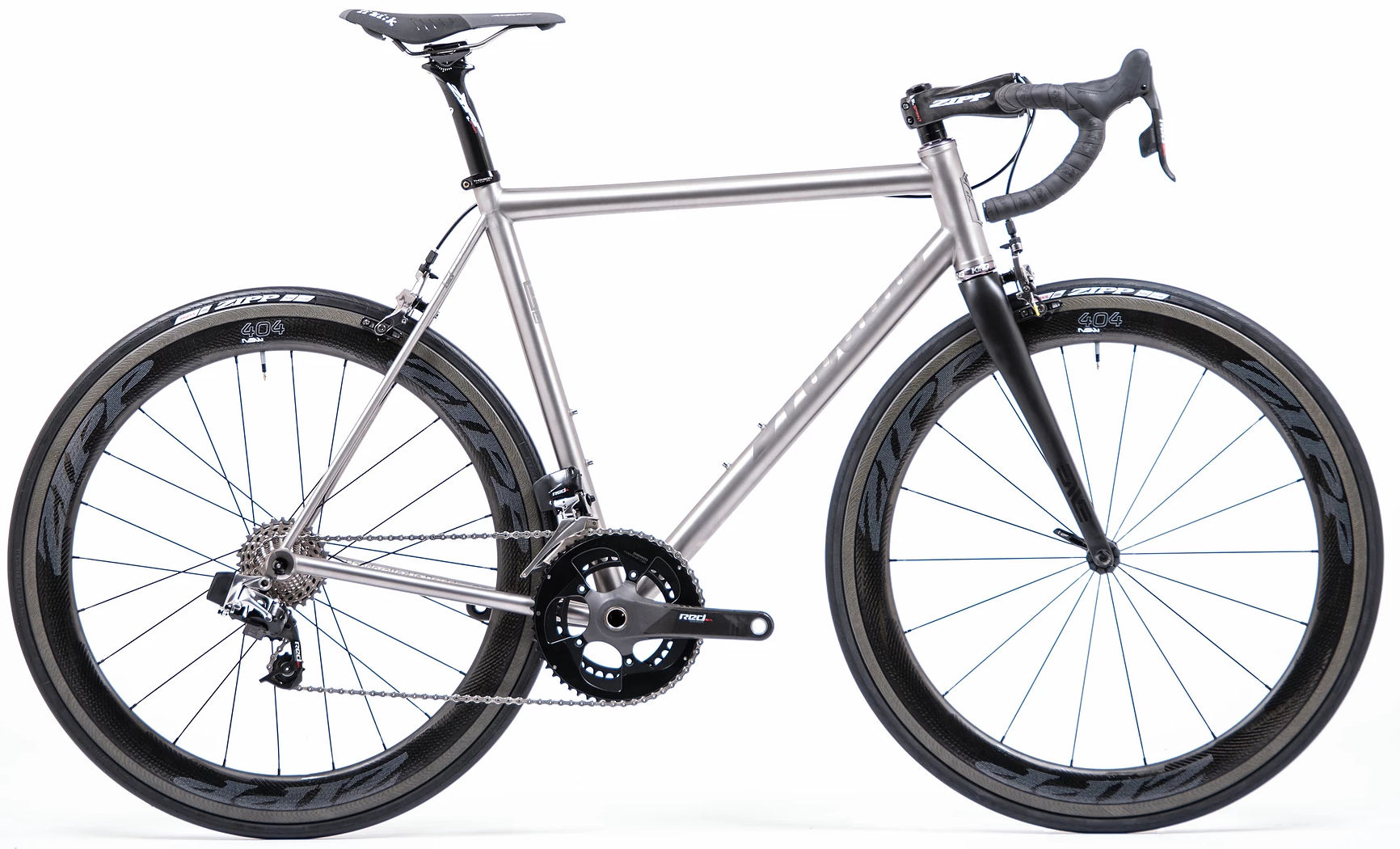

2018 Mosaic RT-1 Stock geometry

Name: 2018 Mosaic RT-1 Stock
Brand: Mosaic

Full frame geometry for the 2018 Mosaic RT-1 Stock, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Trail (mm)
48	512	371	74.5	71	105	515	480	734	72	580	408	977	64
50	526	372	74	71	120	525	500	751	72	586	408	983	64
52	542	379	74	72.5	130	535	520	771	70	577	410	977	62
54	556	380	73.5	72.5	145	545	540	787	70	582	410	982	62
55	566	382	73	72.5	155	555	550	796	70	582	410	982	62
56	577	387	73	73	165	565	560	807	70	592	410	992	58
58	587	401	73	73	175	580	580	821	70	608	412	1010	58
60	601	406	72.5	73	190	595	600	837	70	617	412	1019	58
62	620	404	72	73	210	605	620	856	70	621	415	1026	58

All measurements in millimetres unless marked (°) for angles.
