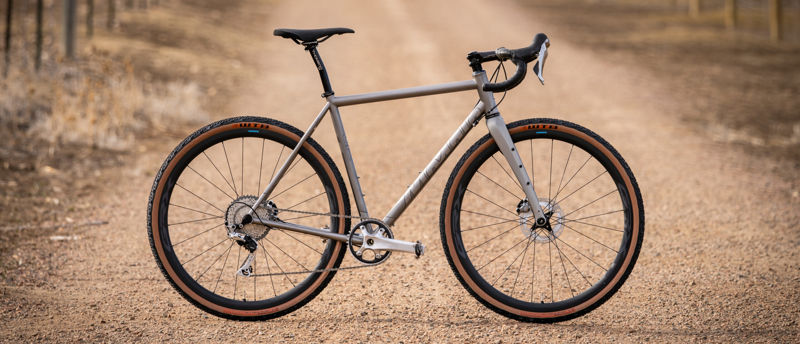

2021 Mosaic GT-2 45 geometry
Full frame geometry for the 2021 Mosaic GT-2 45, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 544 | 361 | 74.5 | 70.5 | 110 | 515 | 480 | 752 | 75 | 430 | 1004 | 50 | 68 |
| 50 | 558 | 367 | 74.5 | 70.5 | 125 | 525 | 500 | 778 | 75 | 430 | 1015 | 50 | 69 |
| 52 | 579 | 367 | 74 | 71 | 145 | 535 | 525 | 795 | 75 | 430 | 1017 | 50 | 65 |
| 54 | 586 | 371 | 73.5 | 71.5 | 150 | 545 | 540 | 805 | 75 | 435 | 1022 | 50 | 62 |
| 55 | 591 | 378 | 73.5 | 71.5 | 155 | 555 | 550 | 810 | 75 | 435 | 1032 | 50 | 62 |
| 56 | 600 | 386 | 73 | 71.5 | 165 | 565 | 560 | 820 | 75 | 435 | 1042 | 50 | 63 |
| 58 | 615 | 391 | 73 | 71.5 | 180 | 580 | 580 | 834 | 75 | 435 | 1053 | 50 | 62 |
| 60 | 634 | 395 | 72.5 | 71.5 | 200 | 595 | 600 | 852 | 75 | 435 | 1063 | 50 | 62 |
| 62 | 652 | 398 | 72.5 | 71.5 | 220 | 605 | 620 | 869 | 75 | 440 | 1078 | 50 | 62 |
All measurements in millimetres unless marked (°) for angles.
