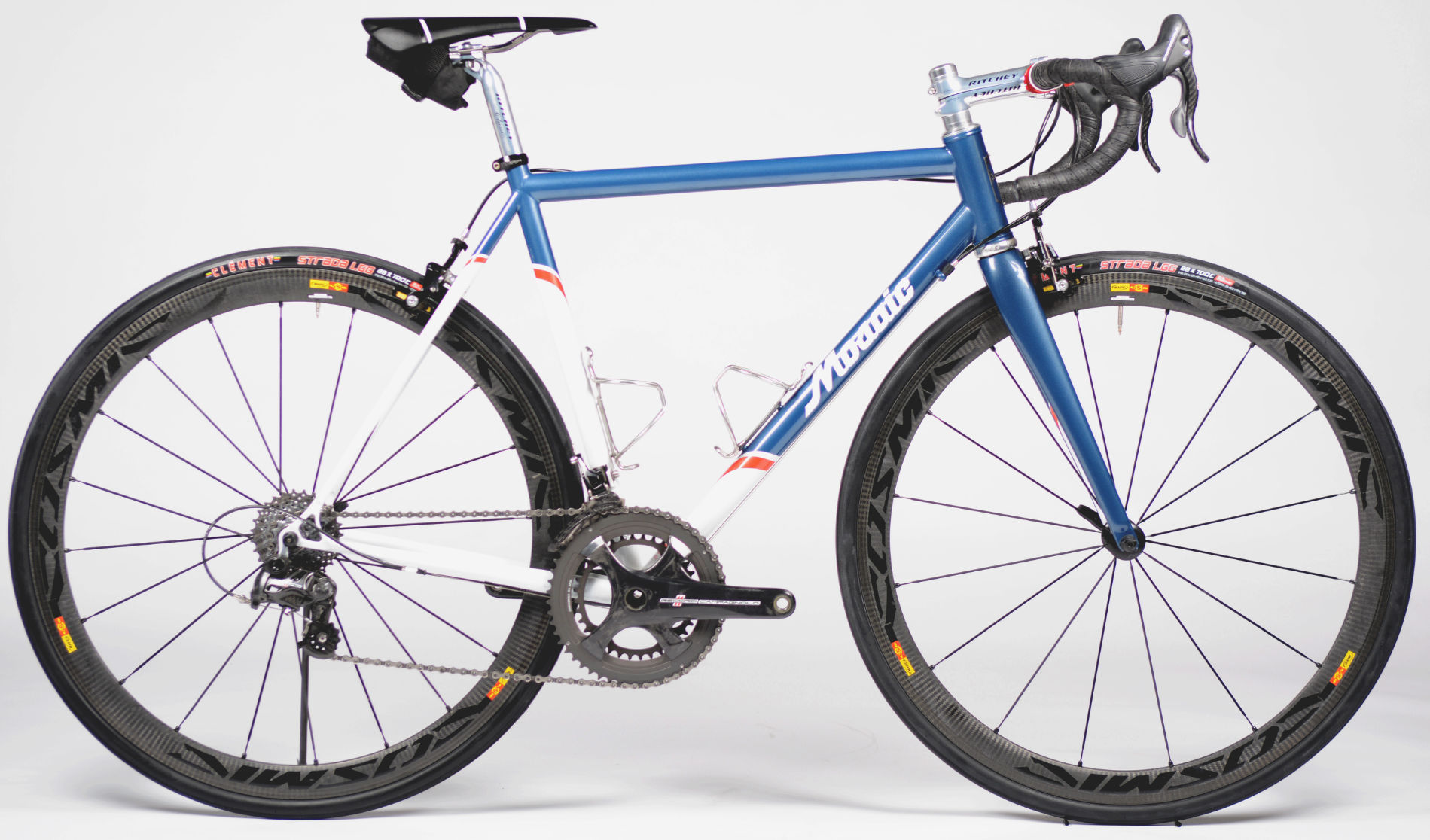

2018 Mosaic RS-1 Stock geometry
Full frame geometry for the 2018 Mosaic RS-1 Stock, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 512 | 371 | 74.5 | 71 | 105 | 515 | 480 | 734 | 72 | 580 | 408 | 977 | 64 |
| 50 | 526 | 372 | 74 | 71 | 120 | 525 | 500 | 751 | 72 | 586 | 408 | 983 | 64 |
| 52 | 542 | 379 | 74 | 72.5 | 130 | 535 | 520 | 771 | 70 | 577 | 410 | 977 | 62 |
| 54 | 556 | 380 | 73.5 | 72.5 | 145 | 545 | 540 | 787 | 70 | 582 | 410 | 982 | 62 |
| 55 | 566 | 382 | 73 | 72.5 | 155 | 555 | 550 | 796 | 70 | 582 | 410 | 982 | 62 |
| 56 | 577 | 387 | 73 | 73 | 165 | 565 | 560 | 807 | 70 | 592 | 410 | 992 | 58 |
| 58 | 587 | 401 | 73 | 73 | 175 | 580 | 580 | 821 | 70 | 608 | 412 | 1010 | 58 |
| 60 | 601 | 406 | 72.5 | 73 | 190 | 595 | 600 | 837 | 70 | 617 | 412 | 1019 | 58 |
| 62 | 620 | 404 | 72 | 73 | 210 | 605 | 620 | 856 | 70 | 621 | 415 | 1026 | 58 |
All measurements in millimetres unless marked (°) for angles.
