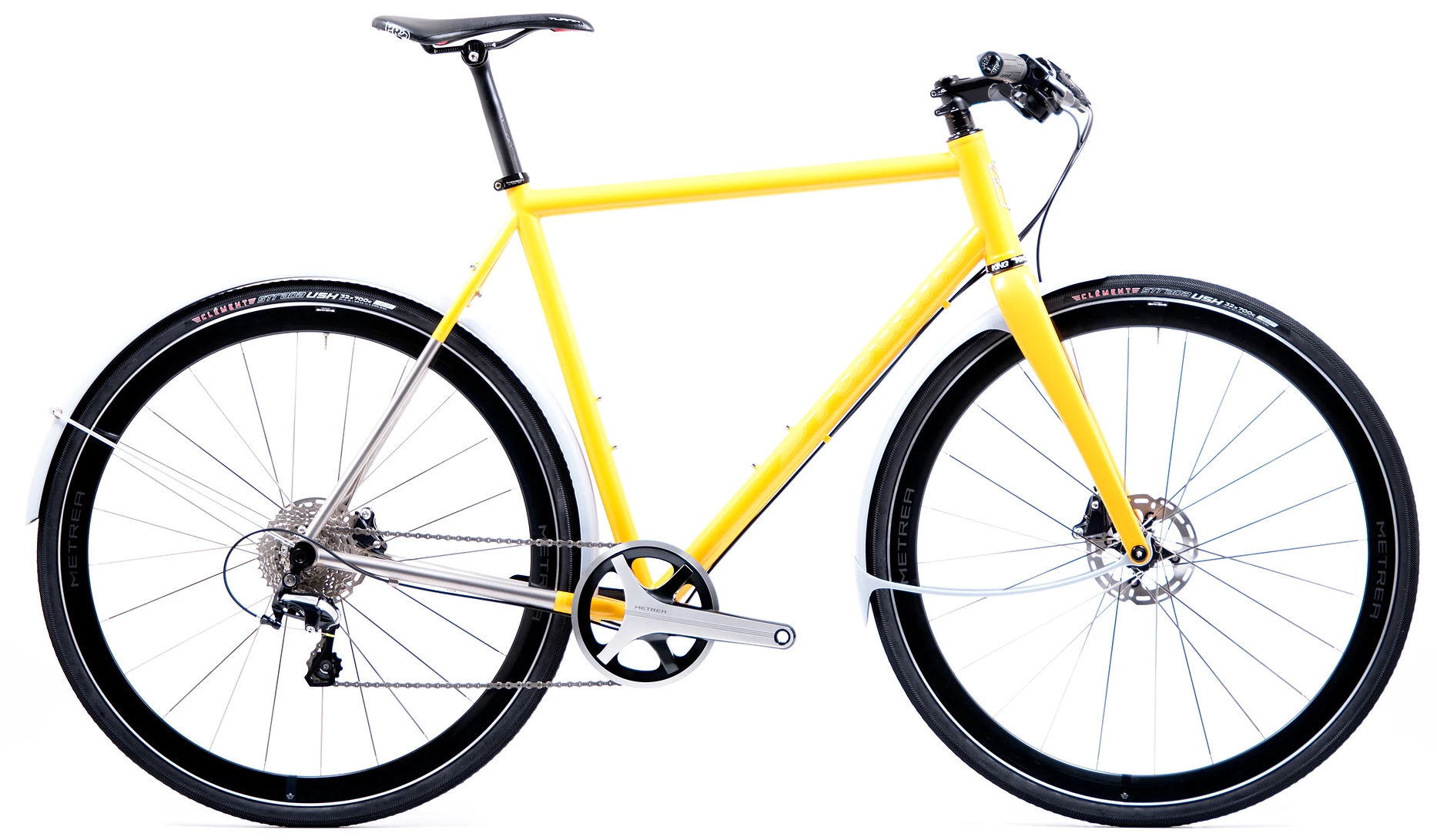

2018 Mosaic CT-1 Stock geometry
Full frame geometry for the 2018 Mosaic CT-1 Stock, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 552 | 355 | 74 | 71.5 | 120 | 515 | 480 | 767 | 80 | 568 | 435 | 990 | 64 |
| S | 572 | 364 | 73.5 | 72 | 140 | 535 | 535 | 786 | 80 | 579 | 435 | 1001 | 62 |
| M | 588 | 380 | 73 | 72 | 155 | 560 | 550 | 800 | 80 | 600 | 435 | 1022 | 62 |
| L | 606 | 394 | 73 | 72 | 175 | 580 | 570 | 819 | 80 | 620 | 435 | 1042 | 62 |
| XL | 620 | 420 | 72.5 | 72 | 190 | 610 | 590 | 836 | 80 | 649 | 435 | 1072 | 62 |
All measurements in millimetres unless marked (°) for angles.
