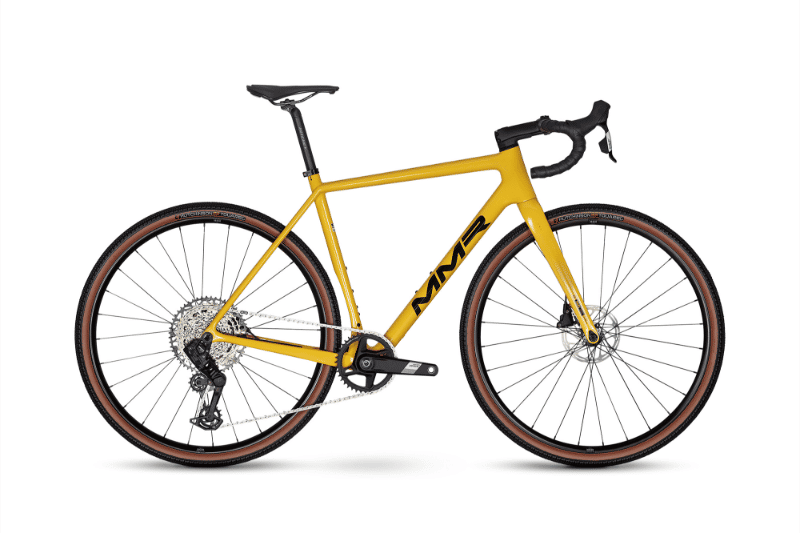

2026 MMR X-Tour geometry
Full frame geometry for the 2026 MMR X-Tour, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 545 | 370 | 74.5 | 71 | 120 | 521 | 490 | 755 | 70 | 425 | 1006 | 50 | 69 |
| M | 569 | 380 | 74 | 71 | 145 | 543 | 530 | 782 | 70 | 425 | 1024 | 50 | 69 |
| L | 592 | 390 | 73 | 71 | 170 | 565 | 560 | 809 | 70 | 425 | 1042 | 50 | 69 |
| XL | 616 | 400 | 73 | 71 | 195 | 588 | 600 | 837 | 70 | 425 | 1060 | 50 | 69 |
All measurements in millimetres unless marked (°) for angles.
