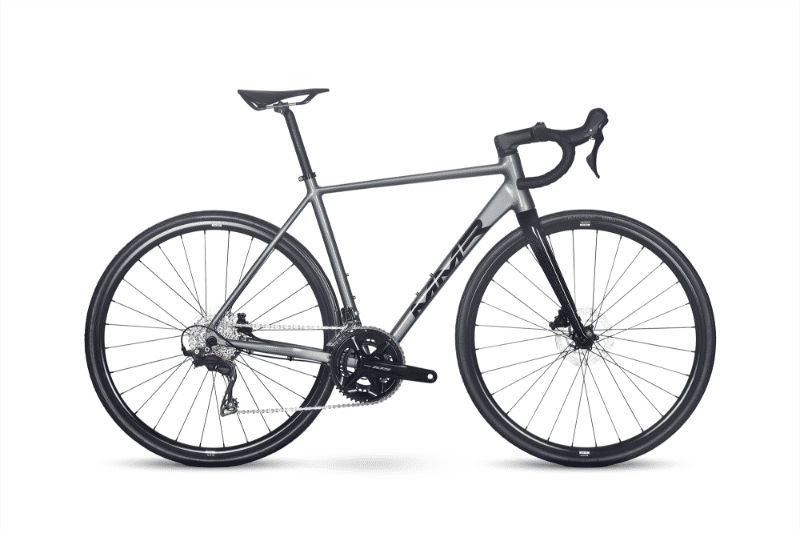

2026 MMR Grip geometry
Full frame geometry for the 2026 MMR Grip, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 494 | 375 | 75 | 71 | 95 | 507 | 450 | 70 | 412 | 976 | 47 | 68 |
| S | 525 | 375 | 74 | 71.5 | 125 | 525 | 490 | 70 | 412 | 983 | 47 | 65 |
| M | 555 | 383 | 73.5 | 72.5 | 153 | 547 | 530 | 70 | 412 | 995 | 47 | 59 |
| L | 580 | 390 | 73 | 72.5 | 180 | 568 | 560 | 70 | 412 | 1006 | 47 | 59 |
| XL | 609 | 400 | 73 | 72.5 | 210 | 586 | 600 | 70 | 412 | 1025 | 47 | 59 |
All measurements in millimetres unless marked (°) for angles.
