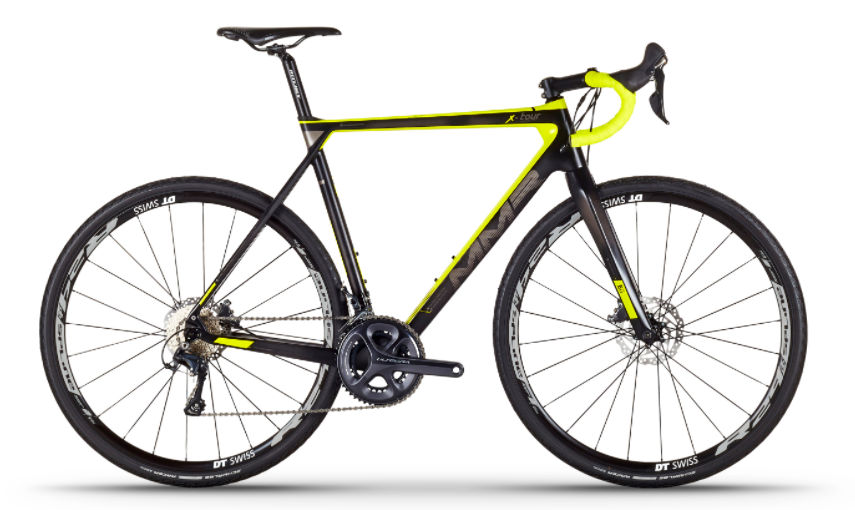

2018 MMR X Tour geometry
Full frame geometry for the 2018 MMR X Tour, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 520 | 381 | 75 | 70 | 100 | 520 | 490 | 65 | 425 | 1014 | 45 |
| M | 544 | 384 | 74.5 | 71.5 | 120 | 535 | 515 | 65 | 425 | 1012 | 45 |
| L | 563 | 387 | 73.5 | 72 | 140 | 554 | 540 | 63 | 425 | 1017 | 45 |
| XL | 584 | 392 | 73 | 72.5 | 160 | 570 | 565 | 63 | 425 | 1023 | 45 |
| XXL | 605 | 395 | 73 | 73 | 180 | 580 | 590 | 63 | 425 | 1028 | 45 |
All measurements in millimetres unless marked (°) for angles.
