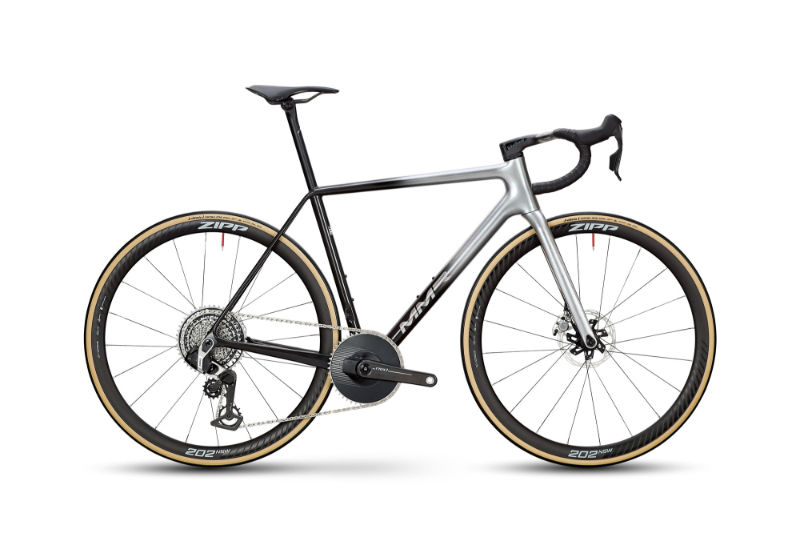

2026 MMR Adrenaline SLR geometry
Full frame geometry for the 2026 MMR Adrenaline SLR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 526 | 379 | 74 | 72 | 125 | 530 | 490 | 70 | 410 | 980 | 47 | 62 |
| M | 546 | 387 | 73.5 | 72.5 | 144 | 549 | 530 | 70 | 410 | 990 | 47 | 59 |
| L | 566 | 395 | 73 | 73 | 163 | 568 | 560 | 70 | 410 | 1000 | 47 | 55 |
All measurements in millimetres unless marked (°) for angles.
