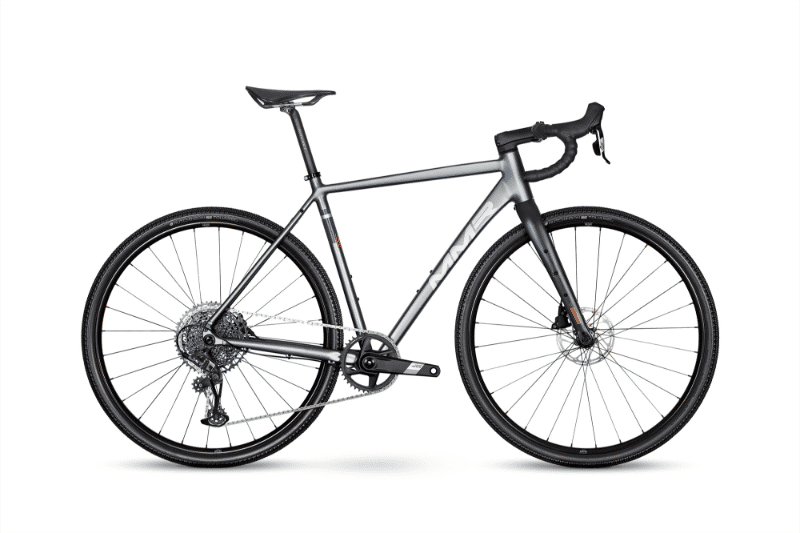

2026 MMR X-Grip geometry
Full frame geometry for the 2026 MMR X-Grip, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 520 | 365 | 74.5 | 70.5 | 95 | 509 | 450 | 70 | 430 | 1002 | 50 | 73 |
| S | 538 | 365 | 74 | 71 | 110 | 519 | 490 | 70 | 430 | 1003 | 50 | 74 |
| M | 565 | 375 | 73.5 | 72 | 135 | 542 | 530 | 70 | 430 | 1013 | 50 | 68 |
| L | 589 | 385 | 73 | 72 | 160 | 565 | 560 | 70 | 430 | 1030 | 50 | 68 |
| XL | 622 | 396 | 73 | 72 | 195 | 586 | 600 | 70 | 430 | 1052 | 50 | 68 |
All measurements in millimetres unless marked (°) for angles.
