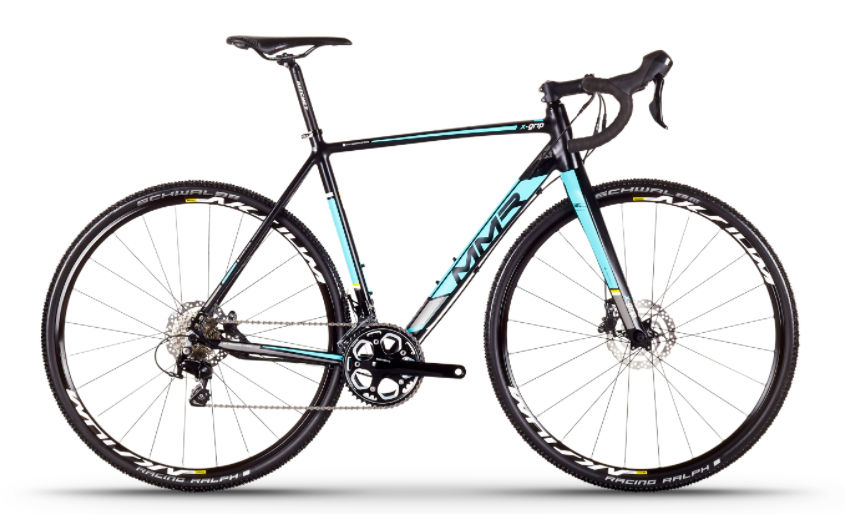

2018 MMR X Grip geometry
Full frame geometry for the 2018 MMR X Grip, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 515 | 380 | 75 | 70 | 100 | 520 | 490 | 67 | 425 | 1013 | 45 |
| M | 541 | 384 | 74.5 | 71.5 | 120 | 535 | 515 | 67 | 425 | 1011 | 45 |
| L | 560 | 383 | 73.5 | 72 | 140 | 550 | 540 | 65 | 425 | 1012 | 45 |
| XL | 581 | 386 | 73 | 72.5 | 160 | 565 | 565 | 65 | 425 | 1017 | 45 |
All measurements in millimetres unless marked (°) for angles.
