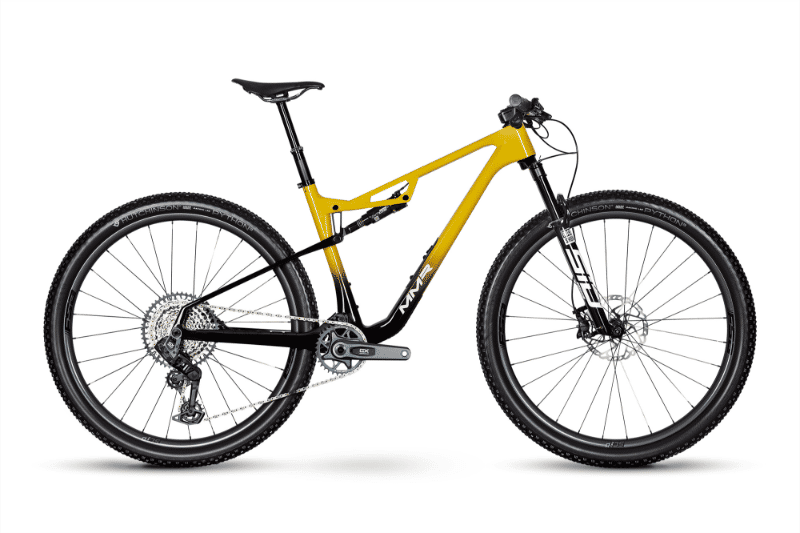

2026 MMR Kenta geometry
Full frame geometry for the 2026 MMR Kenta, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 586 | 430 | 76.5 | 67.5 | 85 | 571 | 430 | 40 | 435 | 1135 | 44 | 108 |
| M | 596 | 455 | 76.5 | 67.5 | 96 | 598 | 457 | 40 | 435 | 1164 | 44 | 108 |
| L | 611 | 480 | 76.5 | 67.5 | 112 | 627 | 508 | 40 | 435 | 1196 | 44 | 108 |
All measurements in millimetres unless marked (°) for angles.
