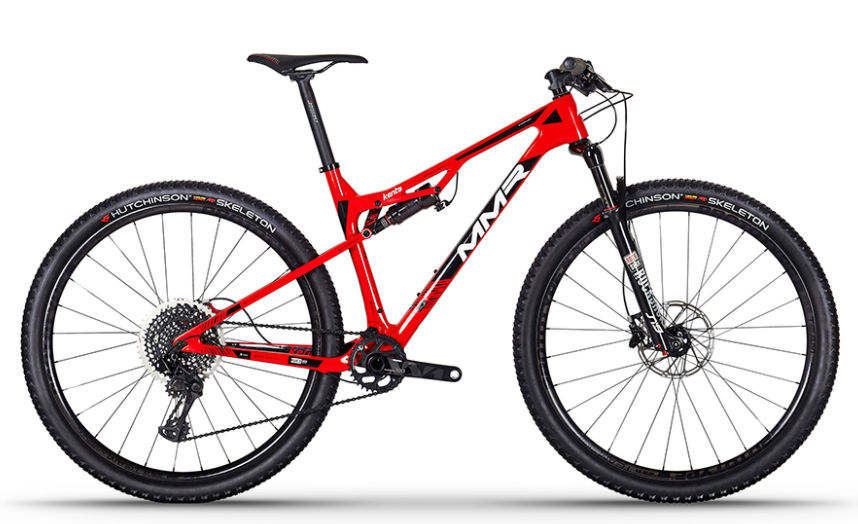

2018 MMR Kenta geometry
Full frame geometry for the 2018 MMR Kenta, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 590 | 400 | 73.8 | 70 | 95 | 548 | 410 | 44 | 445 | 1096 | 51 |
| M | 600 | 418 | 73.8 | 70 | 105 | 568 | 457 | 44 | 445 | 1117 | 51 |
| L | 614 | 436 | 73.8 | 70 | 120 | 591 | 509 | 44 | 445 | 1141 | 51 |
All measurements in millimetres unless marked (°) for angles.
