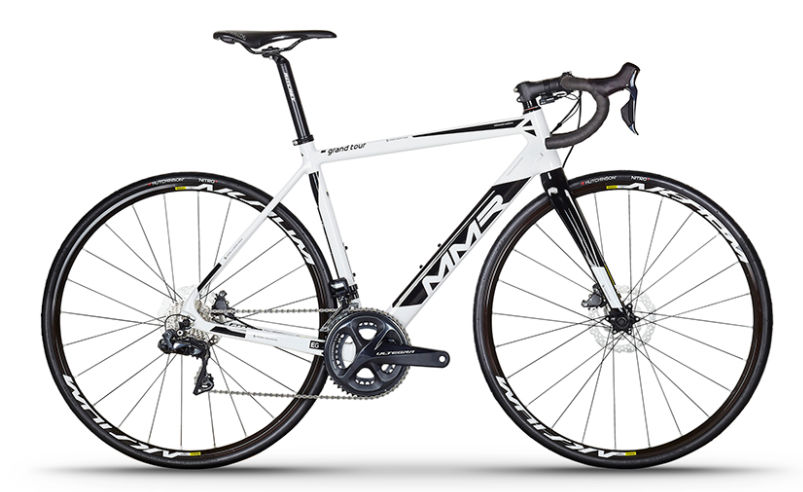

2018 MMR Grand Tour geometry
Full frame geometry for the 2018 MMR Grand Tour, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 511 | 373 | 75 | 71 | 110 | 510 | 450 | 73 | 412 | 980 | 50 |
| S | 522 | 375 | 74.5 | 71.5 | 120 | 520 | 480 | 73 | 412 | 981 | 50 |
| M | 545 | 378 | 74 | 72.5 | 140 | 535 | 510 | 73 | 412 | 985 | 50 |
| L | 570 | 380 | 73.5 | 72.5 | 170 | 550 | 540 | 70 | 412 | 997 | 50 |
| XL | 604 | 386 | 73 | 72.5 | 205 | 571 | 570 | 70 | 412 | 1013 | 50 |
| XXL | 633 | 391 | 73 | 72.5 | 235 | 585 | 600 | 70 | 412 | 1027 | 50 |
All measurements in millimetres unless marked (°) for angles.
