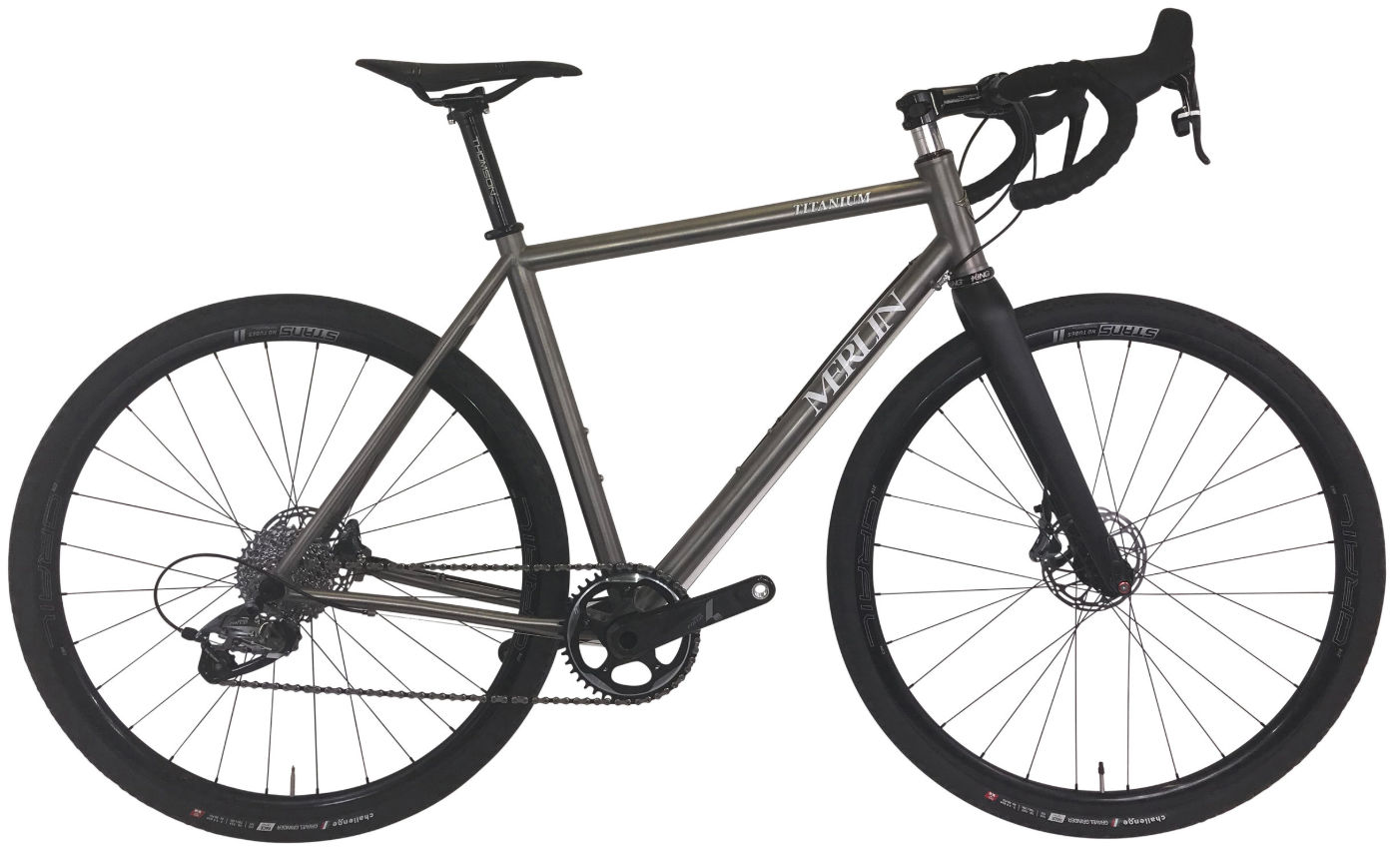

2018 Merlin USA Sandstone geometry
Full frame geometry for the 2018 Merlin USA Sandstone, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 509 | 369 | 74 | 71 | 95 | 515 | 470 | 761 | 72 | 571 | 430 | 991 | 47 | 74 |
| S | 514 | 378 | 73.5 | 71 | 100 | 530 | 490 | 774 | 72 | 582 | 430 | 1001 | 47 | 74 |
| M | 542 | 379 | 73 | 71.5 | 130 | 545 | 510 | 802 | 70 | 589 | 435 | 1014 | 47 | 71 |
| L | 561 | 393 | 73 | 71.5 | 150 | 565 | 530 | 822 | 70 | 609 | 435 | 1035 | 47 | 71 |
| XL | 578 | 393 | 72.5 | 71.5 | 170 | 575 | 550 | 843 | 68 | 615 | 438 | 1044 | 47 | 71 |
| XXL | 599 | 396 | 72.5 | 72 | 190 | 585 | 580 | 870 | 68 | 620 | 438 | 1049 | 47 | 67 |
All measurements in millimetres unless marked (°) for angles.
