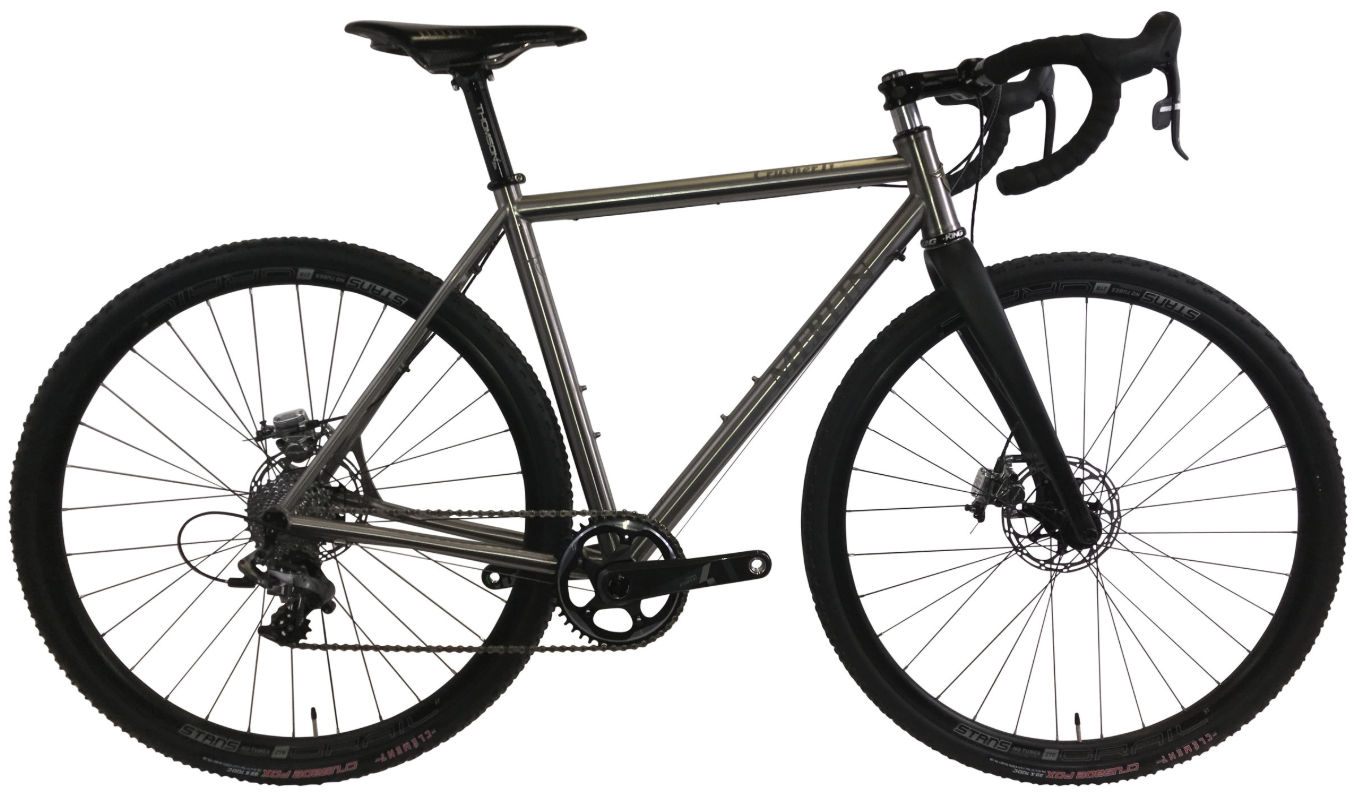

2018 Merlin USA Portage geometry
Full frame geometry for the 2018 Merlin USA Portage, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 519 | 366 | 74 | 71.5 | 95 | 515 | 470 | 770 | 68 | 569 | 425 | 984 | 47 | 67 |
| S | 524 | 375 | 73.5 | 71.5 | 100 | 530 | 490 | 783 | 68 | 579 | 425 | 994 | 47 | 67 |
| M | 554 | 376 | 73 | 72 | 130 | 545 | 510 | 810 | 68 | 585 | 425 | 1000 | 47 | 64 |
| L | 570 | 391 | 73 | 72 | 150 | 565 | 530 | 831 | 65 | 606 | 425 | 1023 | 47 | 64 |
| XL | 589 | 389 | 72.5 | 72 | 170 | 575 | 550 | 852 | 65 | 611 | 430 | 1032 | 47 | 64 |
| XXL | 608 | 393 | 72.5 | 72 | 190 | 585 | 580 | 877 | 65 | 621 | 430 | 1043 | 47 | 64 |
All measurements in millimetres unless marked (°) for angles.
