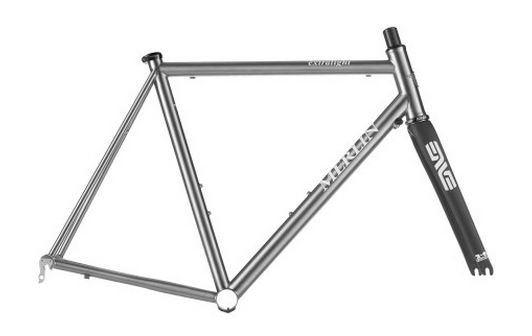

2013 Merlin USA Extralight 2013 geometry
Full frame geometry for the 2013 Merlin USA Extralight 2013, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 509 | 358 | 74.5 | 70 | 112 | 503 | 505 | 744 | 75 | 559 | 408 | 955 | 43 | 76 |
| 51 | 516 | 369 | 74.5 | 70.5 | 117 | 515 | 515 | 754 | 75 | 568 | 408 | 965 | 43 | 73 |
| 52 | 527 | 372 | 74 | 71.5 | 125 | 525 | 525 | 763 | 75 | 566 | 408 | 963 | 43 | 66 |
| 54 | 545 | 383 | 73.5 | 72.5 | 140 | 545 | 550 | 781 | 75 | 574 | 410 | 973 | 43 | 60 |
| 55 | 565 | 389 | 73.5 | 72.8 | 160 | 557 | 575 | 805 | 75 | 584 | 410 | 983 | 43 | 59 |
| 57 | 586 | 396 | 73 | 73.5 | 180 | 575 | 595 | 823 | 75 | 591 | 412 | 991 | 43 | 54 |
| 58 | 606 | 397 | 72.5 | 73.5 | 188 | 587 | 625 | 841 | 75 | 597 | 414 | 1000 | 43 | 54 |
All measurements in millimetres unless marked (°) for angles.
