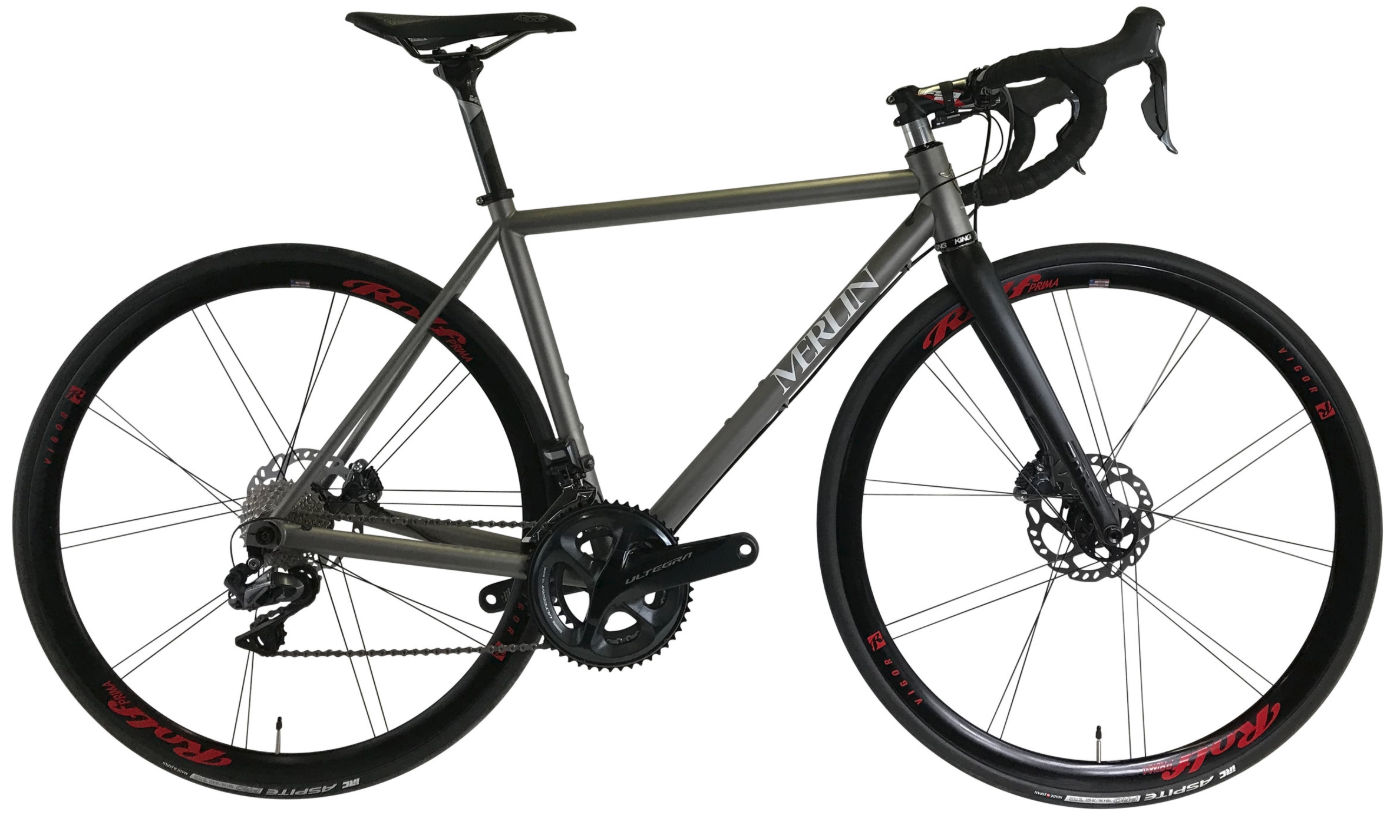

2018 Merlin USA Extralight XLR geometry

Name: 2018 Merlin USA Extralight XLR
Brand: Merlin USA

Full frame geometry for the 2018 Merlin USA Extralight XLR, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)	Trail (mm)
44	495	382	75	71	95	515	470	755	70	576	407	973	43	70
46	502	381	74.5	71.5	100	520	470	759	70	572	407	969	43	67
48	513	378	74	72	110	525	470	765	70	569	407	965	43	64
50	522	380	74	72	120	530	490	780	70	574	407	971	43	64
52	532	382	73.5	72	130	540	490	785	70	579	408	977	43	64
54	543	389	73.5	72.5	140	550	490	791	70	585	408	983	43	61
56	554	401	73	73	150	570	520	813	70	595	410	995	43	58
58	573	410	73	73.5	170	585	560	845	68	606	410	1006	43	55
60	594	408	72.5	74	190	595	580	867	68	605	412	1007	43	52
62	612	422	72.5	74	210	615	600	888	67	624	412	1027	43	52
64	622	418	72	74	220	620	620	904	67	623	415	1029	43	52

All measurements in millimetres unless marked (°) for angles.
