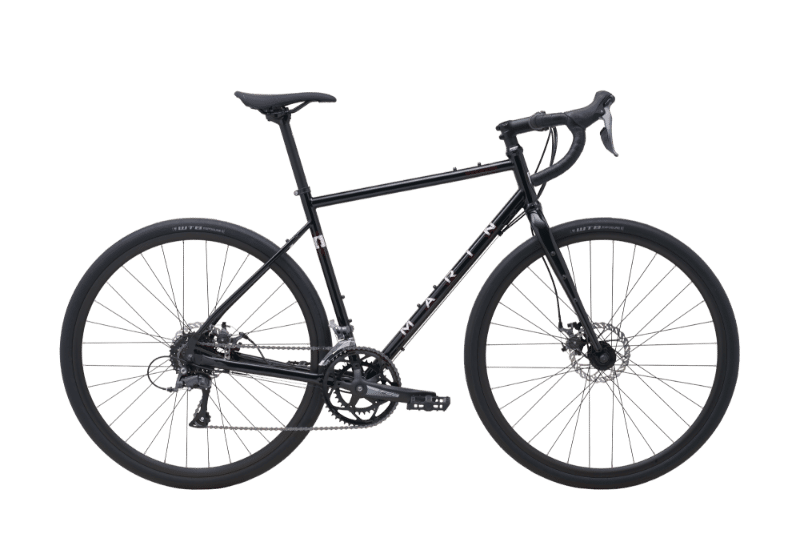

2025 Marin Nicasio geometry
Full frame geometry for the 2025 Marin Nicasio, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 550.2 | 372 | 74.5 | 70.5 | 120 | 524.6 | 460 | 720 | 76 | 430 | 1016.2 | 50 |
| 52 | 568.2 | 375 | 74 | 71.5 | 135 | 537.9 | 480 | 739.7 | 76 | 430 | 1015.6 | 50 |
| 54 | 582.5 | 380 | 74 | 71.5 | 150 | 547 | 500 | 758.3 | 76 | 430 | 1024.4 | 50 |
| 56 | 596.7 | 390 | 74 | 71.5 | 165 | 561.1 | 520 | 776.5 | 76 | 430 | 1040.2 | 50 |
| 58 | 610.9 | 402 | 74 | 71.5 | 180 | 577.2 | 540 | 794.5 | 76 | 430 | 1056.9 | 50 |
| 60 | 625.2 | 415 | 73.5 | 71.5 | 195 | 600.2 | 560 | 812.2 | 76 | 430 | 1074.7 | 50 |
All measurements in millimetres unless marked (°) for angles.
