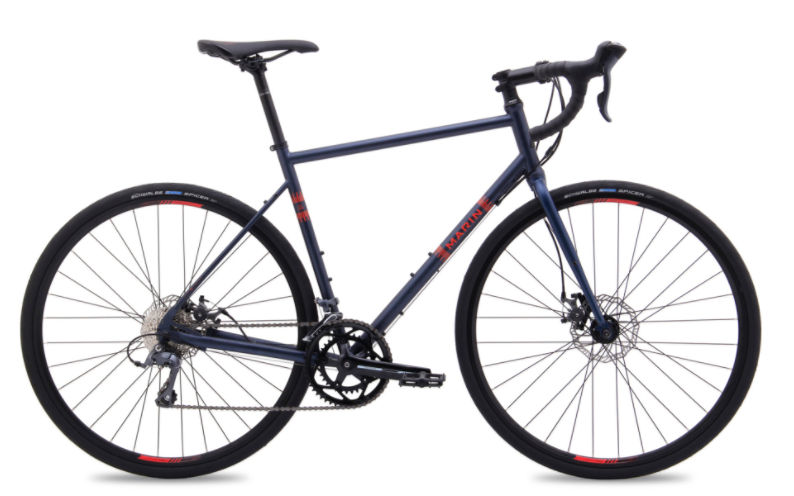

2018 Marin Nicasio geometry

Name: 2018 Marin Nicasio
Brand: Marin

Full frame geometry for the 2018 Marin Nicasio, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)
47	535	350	74.5	70	125	498	440	697	72	420	993	57
50	541	360	74	70.5	130	515	470	721	72	420	1000	57
52	555	360	73.5	70.5	145	525	490	742	72	420	994	57
54	575	378	73.5	72	155	545	510	759	72	420	999	45
56	591	384	73	72.5	170	565	530	777	72	420	1009	45
58	610	399	73	72.5	190	585	550	796	72	420	1029	45
60	619	405	72.5	72.5	200	600	570	812	72	420	1038	45

All measurements in millimetres unless marked (°) for angles.
