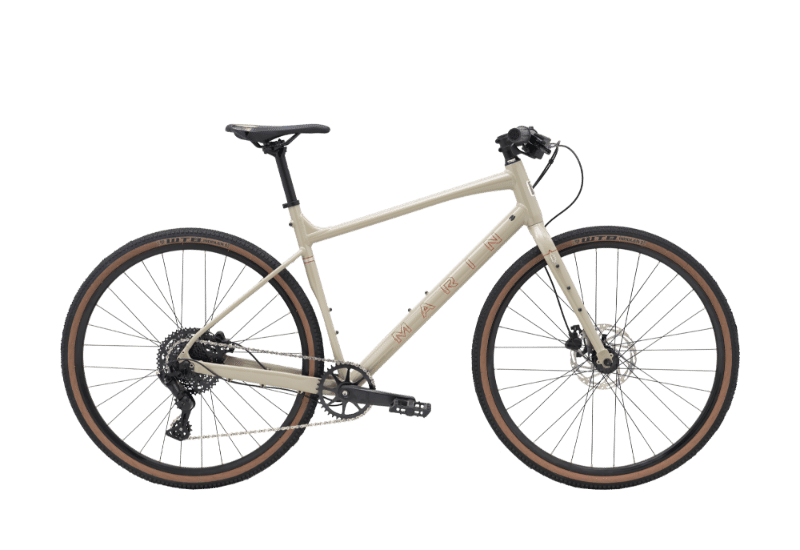

2026 Marin DSX geometry
Full frame geometry for the 2026 Marin DSX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 544.4 | 380 | 74 | 69.5 | 120 | 536.1 | 430 | 658.8 | 80 | 425 | 1024.4 | 50 |
| M | 572.5 | 405 | 74 | 69.5 | 150 | 569.2 | 430 | 700.5 | 80 | 425 | 1060 | 50 |
| L | 600.6 | 420 | 74 | 69.5 | 180 | 592.2 | 520 | 730.4 | 80 | 425 | 1085.4 | 50 |
| XL | 628.7 | 435 | 74 | 69.5 | 210 | 615.3 | 558 | 758.5 | 80 | 425 | 1110.9 | 50 |
All measurements in millimetres unless marked (°) for angles.
