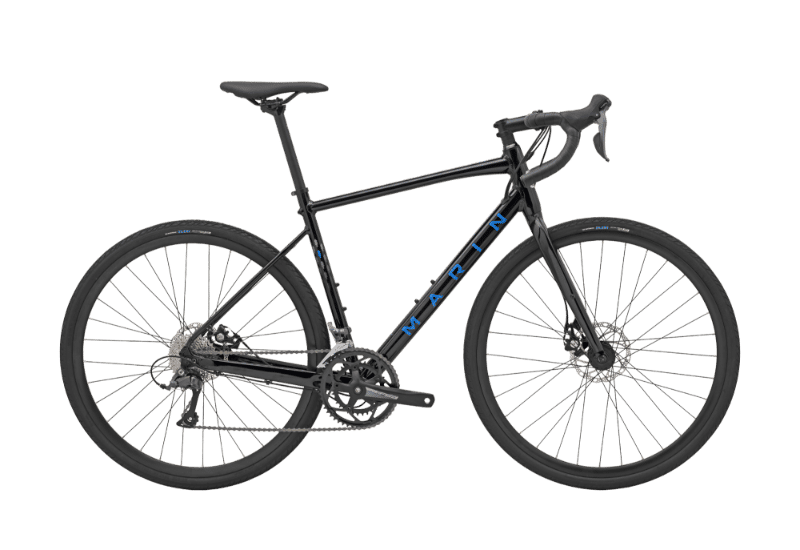

2025 Marin Gestalt geometry
Full frame geometry for the 2025 Marin Gestalt, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 552 | 367 | 74.5 | 71 | 120 | 520 | 460 | 714 | 78 | 432 | 1008 | 50 |
| 52 | 568 | 372 | 74 | 71.5 | 135 | 535 | 480 | 732 | 78 | 432 | 1014 | 50 |
| 54 | 582 | 377 | 73.5 | 71.5 | 150 | 550 | 500 | 755 | 78 | 432 | 1024 | 50 |
| 56 | 601 | 387 | 73.5 | 71.5 | 170 | 565 | 520 | 775 | 78 | 432 | 1040 | 50 |
| 58 | 620 | 402 | 73.5 | 71.5 | 190 | 585 | 540 | 794 | 78 | 432 | 1060 | 50 |
| 60 | 641 | 404 | 73 | 71.5 | 210 | 600 | 560 | 814 | 78 | 432 | 1070 | 50 |
All measurements in millimetres unless marked (°) for angles.
