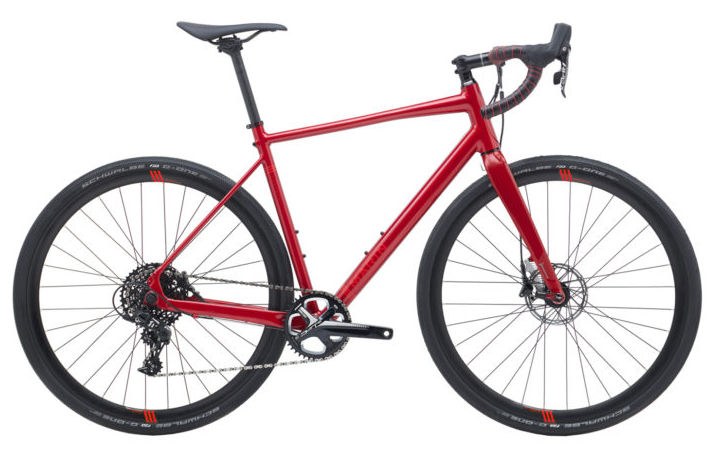

2018 Marin Gestalt geometry

Name: 2018 Marin Gestalt
Brand: Marin

Full frame geometry for the 2018 Marin Gestalt, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)
50	550	342	74	72	120	500	470	760	72	415	954	45
52	565	358	73.5	72.2	135	525	490	776	72	415	972	45
54	579	373	73.5	72.2	150	545	510	793	72	415	992	45
56	599	382	73	72.5	170	565	530	812	72	415	1004	45
58	618	396	73	72.5	190	585	550	831	72	415	1024	45
60	637	399	72.5	72.5	210	600	570	850	72	415	1033	45

All measurements in millimetres unless marked (°) for angles.
