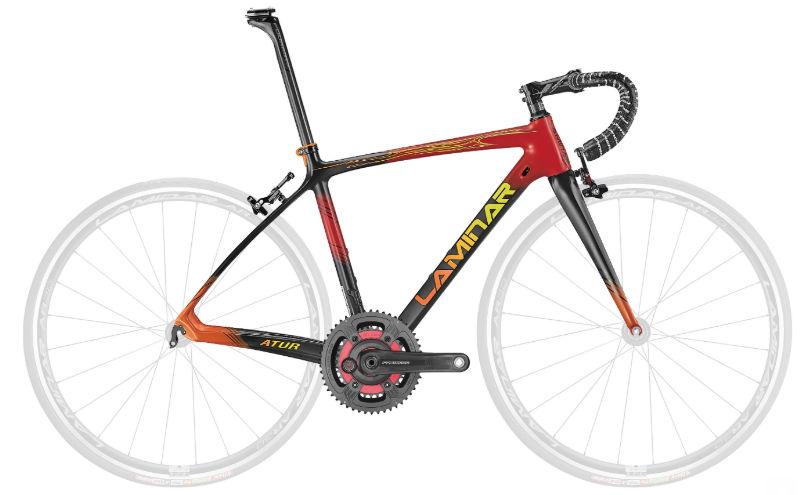

2019 Laminar Atur geometry
Full frame geometry for the 2019 Laminar Atur, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 522 | 364 | 74.1 | 70.8 | 123 | 513 | 480 | 71 | 569 | 412 | 973 | 43 | 71 |
| S | 547 | 373 | 73.7 | 71.1 | 148 | 533 | 510 | 71 | 583 | 412 | 987 | 43 | 70 |
| M | 570 | 383 | 73.3 | 71.4 | 174 | 554 | 540 | 69 | 599 | 412 | 1003 | 43 | 68 |
| L | 594 | 391 | 72.9 | 71.7 | 198 | 574 | 570 | 69 | 612 | 412 | 1017 | 43 | 66 |
All measurements in millimetres unless marked (°) for angles.
