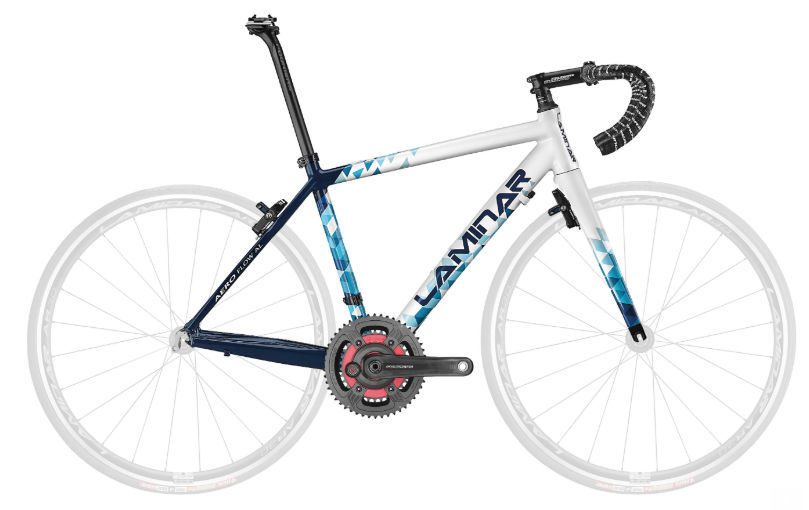

2019 Laminar Aero Flow Al geometry
Full frame geometry for the 2019 Laminar Aero Flow Al, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 512 | 373 | 75.5 | 70.3 | 115 | 505 | 420 | 70 | 578 | 405 | 977 | 43 | 75 |
| XS | 519 | 376 | 74.5 | 71 | 120 | 520 | 430 | 70 | 578 | 405 | 977 | 43 | 70 |
| S | 537 | 376 | 73.5 | 72 | 135 | 535 | 465 | 70 | 575 | 405 | 974 | 43 | 64 |
| M | 554 | 386 | 73 | 73 | 150 | 555 | 500 | 70 | 580 | 405 | 980 | 43 | 58 |
| L | 571 | 384 | 72 | 73 | 170 | 570 | 535 | 68 | 585 | 405 | 986 | 43 | 58 |
All measurements in millimetres unless marked (°) for angles.
