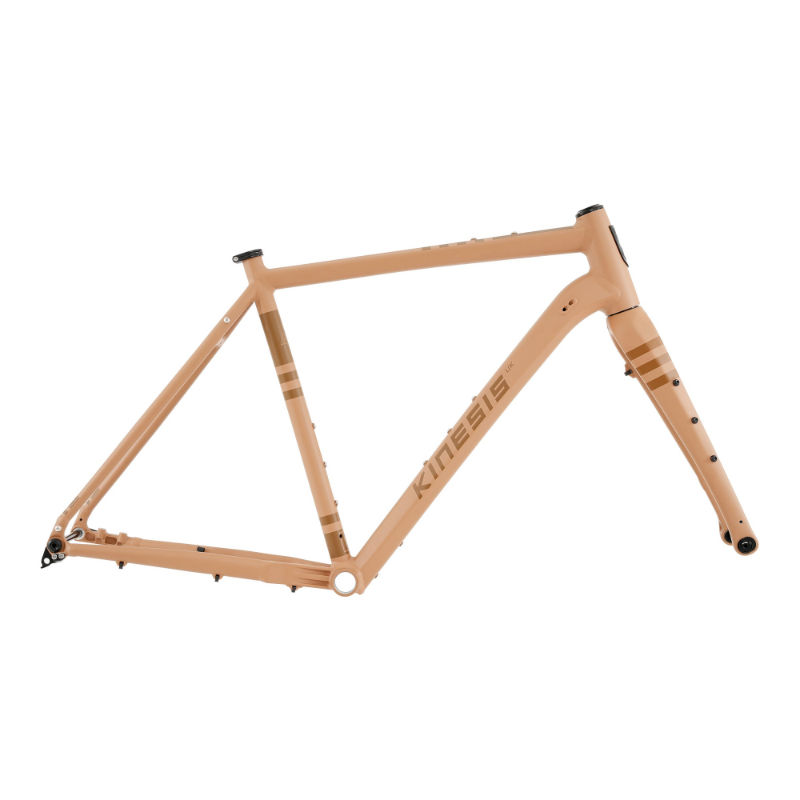

2026 Kinesis Tripster AT geometry
Full frame geometry for the 2026 Kinesis Tripster AT, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 530 | 365 | 74 | 70 | 114 | 517 | 440 | 70 | 587 | 440 | 1017 | 47 |
| 50 | 540 | 370 | 74 | 70 | 124 | 525 | 470 | 70 | 595 | 440 | 1025 | 47 |
| 52 | 555 | 378 | 74 | 70.5 | 138 | 537 | 495 | 70 | 604 | 440 | 1034 | 47 |
| 54 | 573 | 386 | 73.8 | 70.5 | 157 | 553 | 540 | 70 | 618 | 440 | 1048 | 47 |
| 56 | 591 | 393 | 73.8 | 70.5 | 176 | 565 | 560 | 70 | 631 | 440 | 1061 | 47 |
| 58 | 609 | 400 | 73.8 | 70.5 | 195 | 580 | 580 | 70 | 644 | 440 | 1075 | 47 |
| 60 | 627 | 407 | 73.8 | 71 | 212 | 595 | 600 | 70 | 652 | 440 | 1083 | 47 |
| 62 | 645 | 412 | 73 | 71 | 231 | 609 | 620 | 70 | 663 | 440 | 1094 | 47 |
All measurements in millimetres unless marked (°) for angles.
