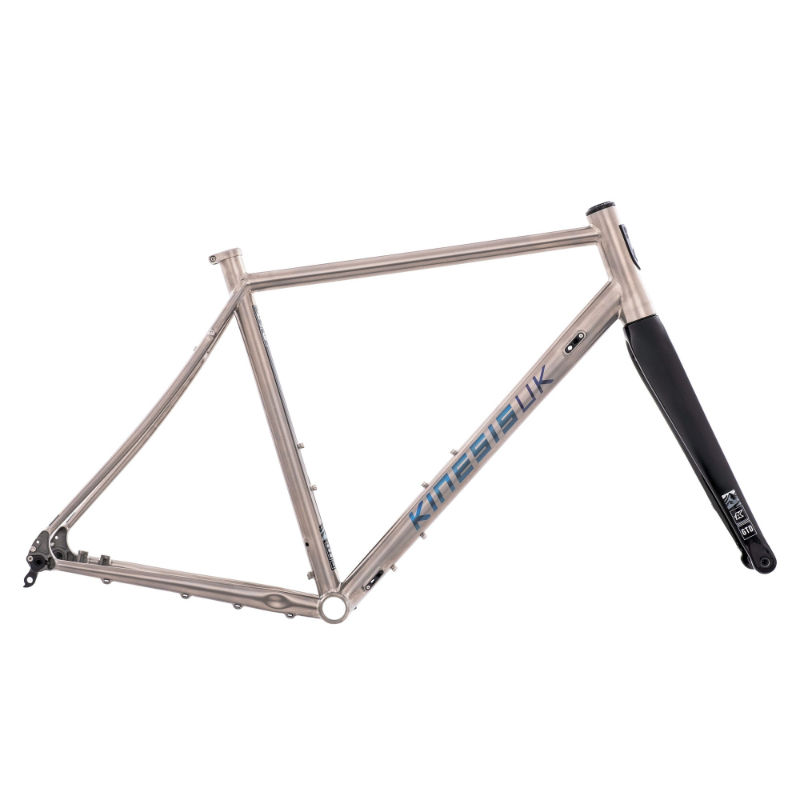

2026 Kinesis GTD v2 geometry
Full frame geometry for the 2026 Kinesis GTD v2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 530 | 368 | 74 | 70.5 | 123 | 520 | 440 | 72 | 584 | 420 | 994 | 47 |
| 50 | 542 | 375 | 74 | 70.5 | 136 | 530 | 470 | 72 | 596 | 420 | 1005 | 47 |
| 52 | 556 | 382 | 73.8 | 71 | 149 | 544 | 495 | 72 | 603 | 420 | 1012 | 47 |
| 54 | 570 | 389 | 73.5 | 71 | 166 | 558 | 540 | 70 | 615 | 420 | 1025 | 47 |
| 56 | 585 | 396 | 73.5 | 71.5 | 180 | 569 | 560 | 70 | 622 | 420 | 1032 | 47 |
| 58 | 600 | 403 | 73.5 | 71.5 | 196 | 581 | 580 | 69 | 634 | 420 | 1044 | 47 |
| 60 | 620 | 410 | 73 | 72 | 215 | 600 | 600 | 69 | 642 | 420 | 1053 | 47 |
All measurements in millimetres unless marked (°) for angles.
