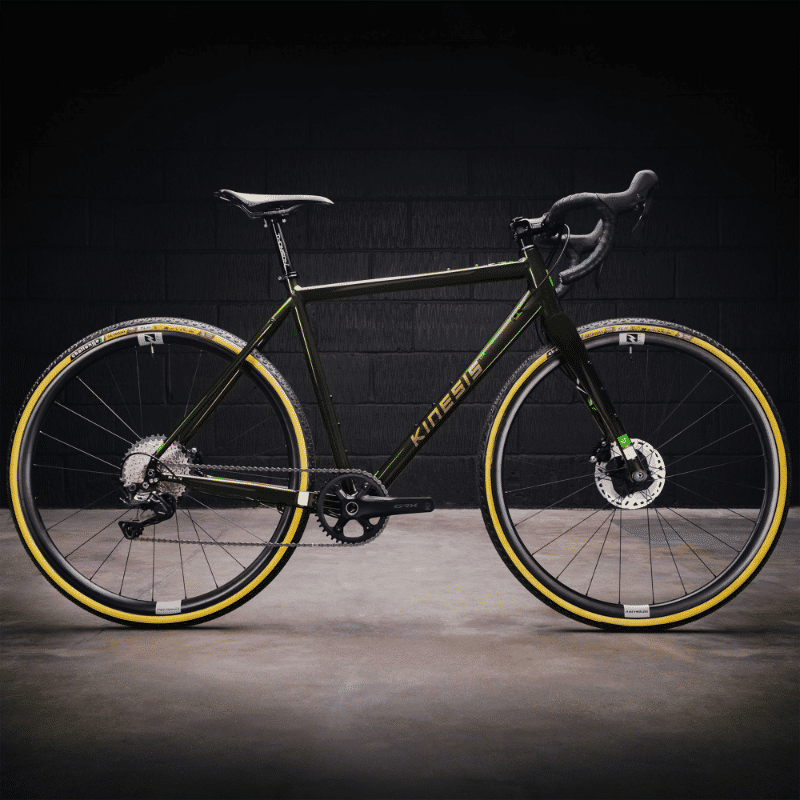

2026 Kinesis GX Race geometry
Full frame geometry for the 2026 Kinesis GX Race, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 533 | 368 | 74 | 70 | 110 | 521 | 440 | 75 | 590 | 440 | 1018 | 47 |
| 50 | 543 | 375 | 74 | 70 | 120 | 531 | 470 | 75 | 600 | 440 | 1029 | 47 |
| 52 | 559 | 382 | 74 | 70.5 | 135 | 542 | 495 | 75 | 608 | 440 | 1037 | 47 |
| 54 | 575 | 389 | 73.8 | 70.5 | 155 | 557 | 540 | 72 | 621 | 440 | 1051 | 47 |
| 56 | 594 | 396 | 73.8 | 70.5 | 175 | 569 | 560 | 72 | 635 | 440 | 1064 | 47 |
| 58 | 612 | 403 | 73.5 | 70.5 | 195 | 584 | 580 | 72 | 648 | 440 | 1078 | 47 |
| 60 | 633 | 410 | 73.3 | 71 | 215 | 600 | 600 | 72 | 657 | 440 | 1087 | 47 |
All measurements in millimetres unless marked (°) for angles.
