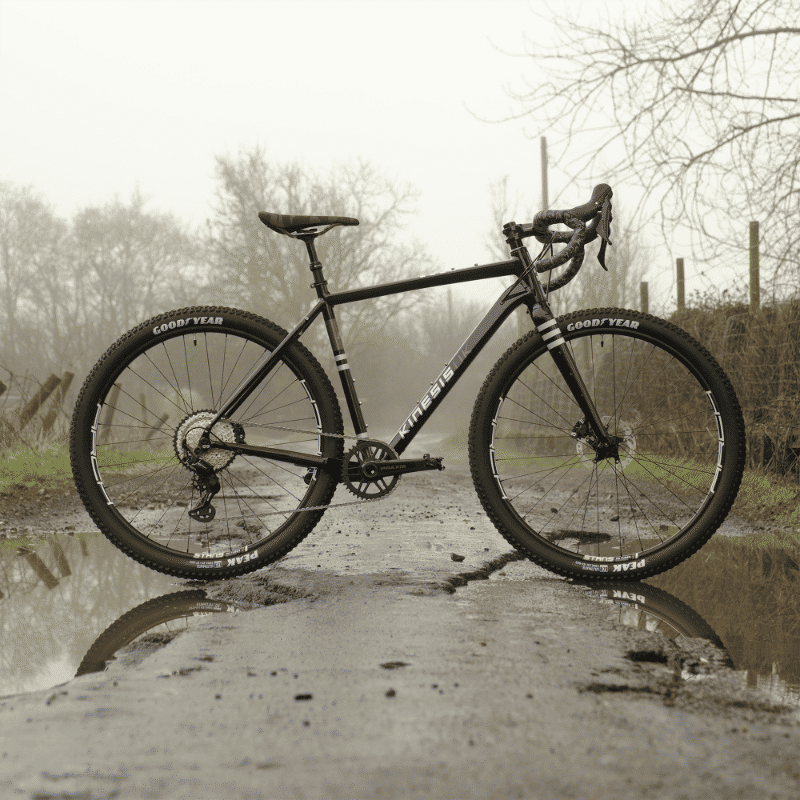

2026 Kinesis Tripster AT Plus geometry
Full frame geometry for the 2026 Kinesis Tripster AT Plus, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 552 | 370 | 74 | 70 | 100 | 528 | 430 | 80 | 600 | 450 | 1038 | 50 |
| 50 | 560 | 378 | 74 | 70.5 | 110 | 539 | 460 | 77 | 607 | 450 | 1045 | 50 |
| 52 | 577 | 386 | 74 | 70.5 | 130 | 551 | 490 | 75 | 621 | 450 | 1060 | 50 |
| 54 | 596 | 394 | 74 | 70.5 | 150 | 565 | 530 | 75 | 636 | 450 | 1075 | 50 |
| 56 | 614 | 402 | 73.8 | 70.5 | 170 | 581 | 550 | 75 | 650 | 450 | 1090 | 50 |
| 58 | 632 | 410 | 73.5 | 71 | 190 | 597 | 570 | 72 | 660 | 450 | 1100 | 50 |
| 60 | 649 | 418 | 73.3 | 71 | 210 | 613 | 590 | 70 | 674 | 450 | 1115 | 50 |
All measurements in millimetres unless marked (°) for angles.
