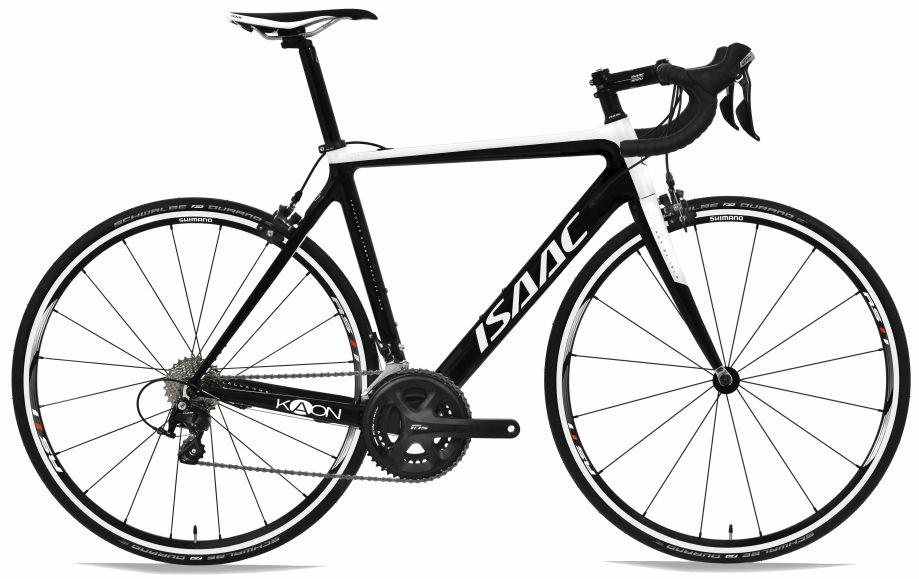

2015 Isaac Kaon geometry
Full frame geometry for the 2015 Isaac Kaon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 504 | 348 | 75 | 68.6 | 115 | 483 | 458 | 691 | 72 | 570 | 406 | 968 | 45 | 83 |
| 50 | 516 | 376 | 74.5 | 72 | 115 | 519 | 500 | 719 | 70 | 571 | 406 | 964 | 45 | 61 |
| 52 | 525 | 379 | 74.5 | 72 | 125 | 525 | 520 | 735 | 70 | 577 | 406 | 972 | 45 | 61 |
| 54 | 545 | 378 | 74 | 72 | 145 | 535 | 540 | 764 | 70 | 583 | 406 | 979 | 45 | 61 |
| 56 | 561 | 384 | 73.5 | 72.5 | 160 | 550 | 550 | 785 | 70 | 588 | 406 | 985 | 45 | 58 |
| 58 | 582 | 392 | 73 | 73 | 180 | 570 | 580 | 806 | 70 | 598 | 406 | 996 | 45 | 55 |
| 60 | 602 | 406 | 73 | 74 | 200 | 590 | 600 | 827 | 70 | 608 | 406 | 1011 | 45 | 49 |
All measurements in millimetres unless marked (°) for angles.
