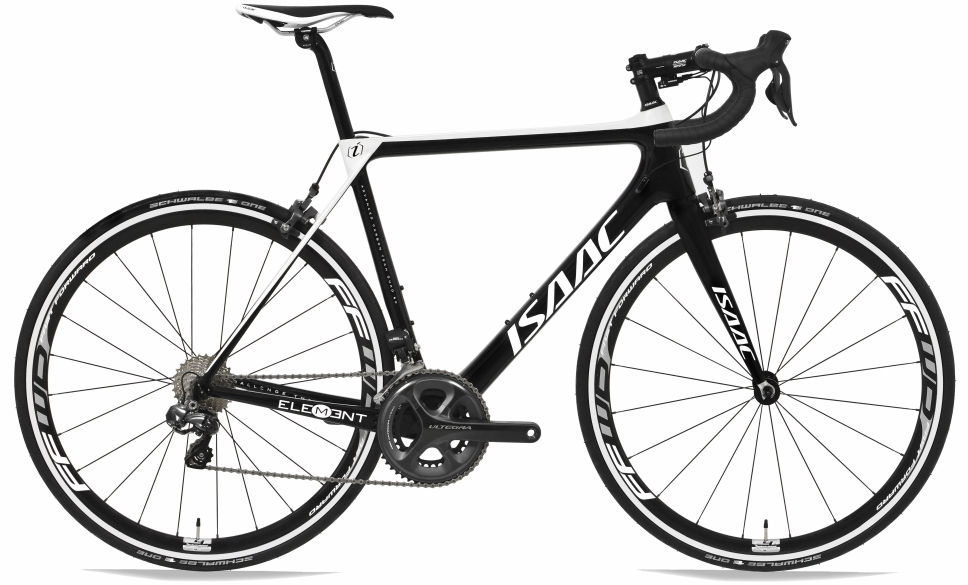

2015 Isaac Element geometry
Full frame geometry for the 2015 Isaac Element, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 520 | 363 | 74.5 | 71 | 125 | 510 | 430 | 699 | 70 | 567 | 404 | 964 | 45 | 67 |
| 52 | 541 | 374 | 73.5 | 72 | 145 | 535 | 476 | 745 | 68 | 576 | 404 | 973 | 45 | 61 |
| 55 | 557 | 389 | 73 | 72.5 | 160 | 559 | 518 | 779 | 68 | 592 | 404 | 988 | 45 | 58 |
| 58 | 576 | 394 | 72.5 | 73 | 180 | 575 | 538 | 801 | 66 | 598 | 404 | 995 | 45 | 55 |
| 61 | 598 | 417 | 74 | 74 | 200 | 589 | 553 | 818 | 66 | 618 | 404 | 1015 | 45 | 49 |
All measurements in millimetres unless marked (°) for angles.
