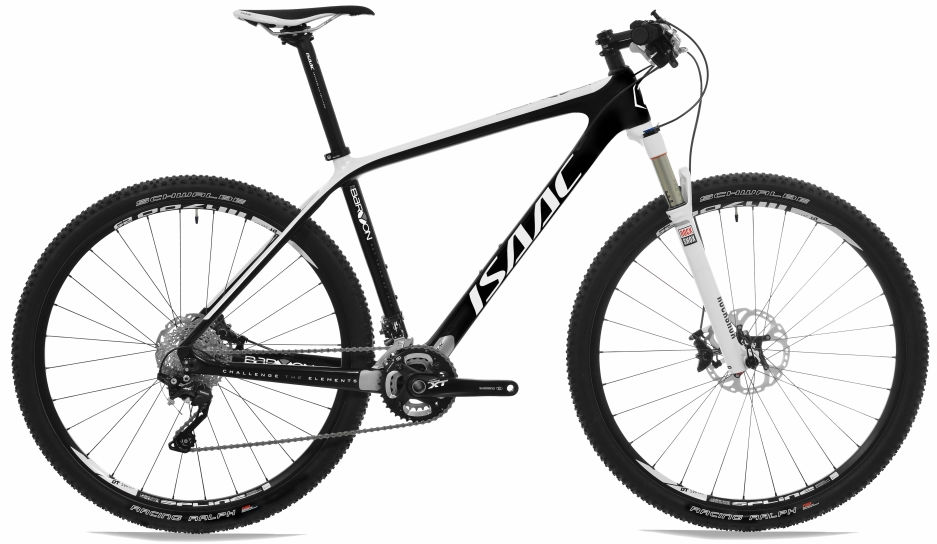

2015 Isaac Baryon 29 geometry
Full frame geometry for the 2015 Isaac Baryon 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 581 | 384 | 73 | 71.5 | 100 | 562 | 393 | 696 | 60 | 445 | 1076 | 51 | 66 |
| 17 | 591 | 414 | 73 | 71.5 | 110 | 595 | 445 | 750 | 60 | 445 | 1110 | 51 | 66 |
| 19 | 604 | 433 | 73 | 71.5 | 110 | 617 | 483 | 785 | 60 | 445 | 1108 | 51 | 66 |
| 21 | 606 | 457 | 73 | 69.6 | 130 | 643 | 533 | 802 | 60 | 445 | 1145 | 51 | 79 |
All measurements in millimetres unless marked (°) for angles.
