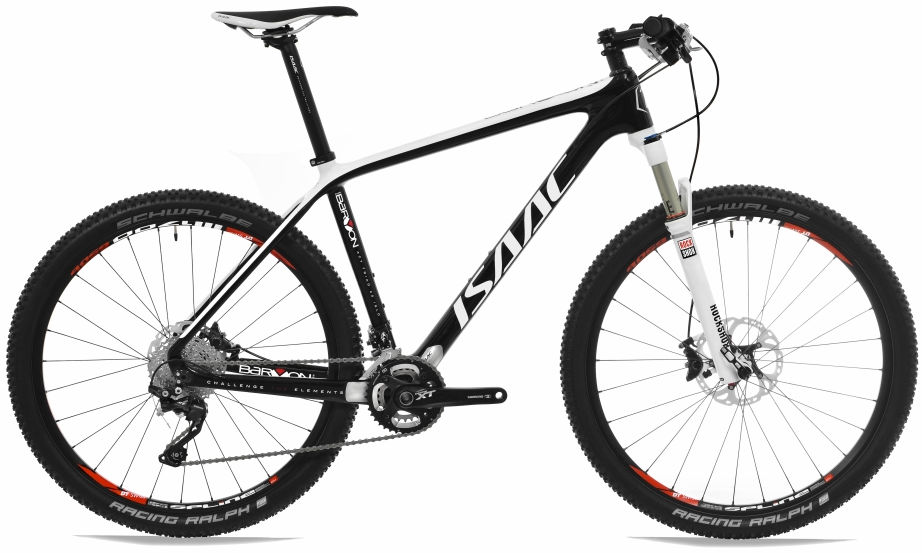

2015 Isaac Baryon 650B geometry
Full frame geometry for the 2015 Isaac Baryon 650B, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 581 | 381 | 72.7 | 71.2 | 100 | 562 | 393 | 682 | 60 | 425 | 1056 | 51 | 60 |
| 17 | 591 | 412 | 72.7 | 71.2 | 110 | 596 | 445 | 741 | 60 | 425 | 1090 | 51 | 60 |
| 19 | 604 | 430 | 72.7 | 71.2 | 110 | 618 | 483 | 770 | 60 | 425 | 1088 | 51 | 60 |
| 21 | 606 | 443 | 71.7 | 69.2 | 130 | 644 | 533 | 787 | 60 | 425 | 1125 | 51 | 72 |
All measurements in millimetres unless marked (°) for angles.
