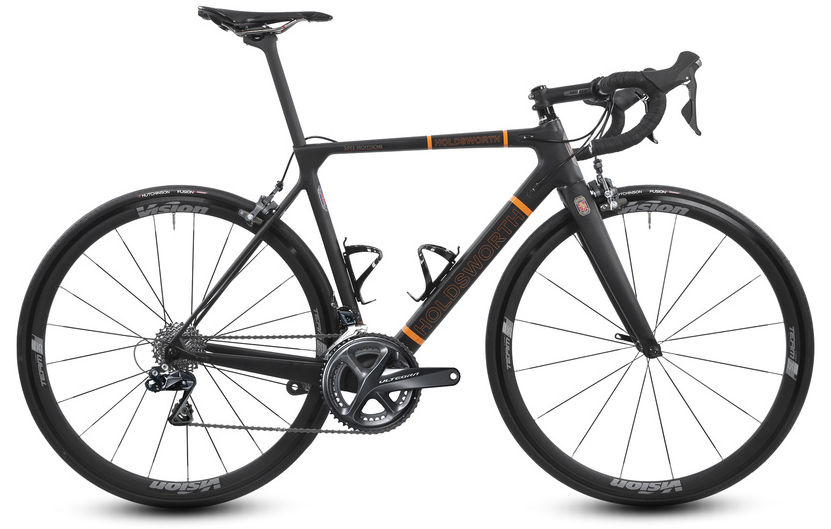

2017 Holdsworth Super Professional Carbon geometry
Full frame geometry for the 2017 Holdsworth Super Professional Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 511 | 359 | 73 | 70.5 | 115 | 513 | 480 | 68 | 575 | 405 | 970 | 52 |
| 51 | 535 | 366 | 73 | 72 | 131 | 530 | 510 | 68 | 577 | 405 | 972 | 52 |
| 54 | 556 | 379 | 73 | 73 | 154 | 547 | 540 | 68 | 575 | 405 | 971 | 44 |
| 56 | 586 | 386 | 73 | 73.5 | 178 | 563 | 560 | 68 | 587 | 405 | 983 | 44 |
| 58 | 611 | 395 | 73 | 73.5 | 205 | 580 | 580 | 68 | 604 | 405 | 999 | 44 |
All measurements in millimetres unless marked (°) for angles.
