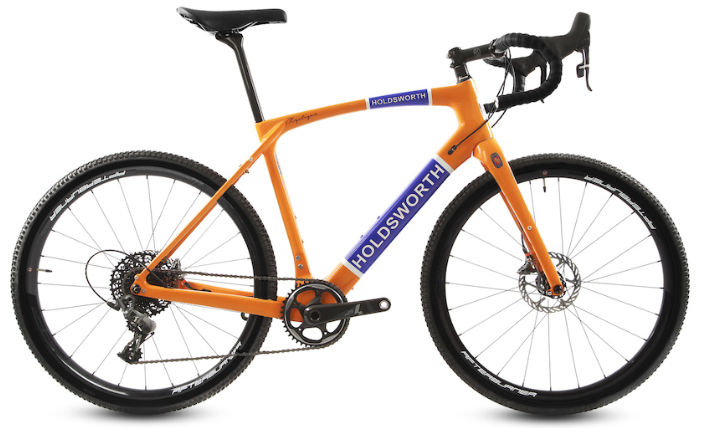

2018 Holdsworth Mystique geometry
Full frame geometry for the 2018 Holdsworth Mystique, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 537 | 356 | 74.3 | 70 | 110 | 505 | 450 | 68 | 584 | 440 | 1014 | 50 |
| 52 | 561 | 365 | 74 | 70 | 135 | 526 | 480 | 68 | 601 | 440 | 1032 | 50 |
| 54 | 584 | 373 | 73.5 | 71 | 155 | 546 | 500 | 68 | 607 | 440 | 1038 | 50 |
| 56 | 602 | 385 | 73 | 71 | 175 | 570 | 520 | 68 | 627 | 440 | 1058 | 50 |
| 58 | 621 | 401 | 73 | 71 | 195 | 591 | 540 | 68 | 648 | 440 | 1079 | 50 |
All measurements in millimetres unless marked (°) for angles.
