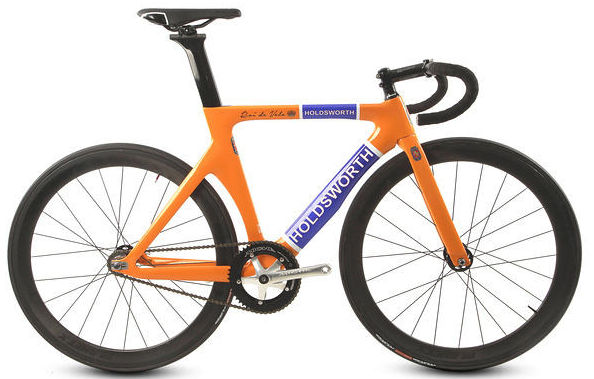

2017 Holdsworth Roi de Velo geometry
Full frame geometry for the 2017 Holdsworth Roi de Velo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 476 | 370 | 74.5 | 72.5 | 110 | 495 | 470 | 45 | 545 | 385 | 910 | 43 |
| 51 | 498 | 379 | 74.5 | 72.5 | 115 | 515 | 490 | 45 | 564 | 385 | 929 | 43 |
| 53 | 506 | 395 | 74.5 | 74.5 | 120 | 535 | 520 | 45 | 558 | 385 | 944 | 35 |
| 56 | 512 | 420 | 74.5 | 74.5 | 125 | 560 | 540 | 45 | 584 | 385 | 964 | 35 |
| 58 | 525 | 440 | 74.5 | 74.5 | 140 | 585 | 560 | 45 | 608 | 385 | 983 | 35 |
All measurements in millimetres unless marked (°) for angles.
