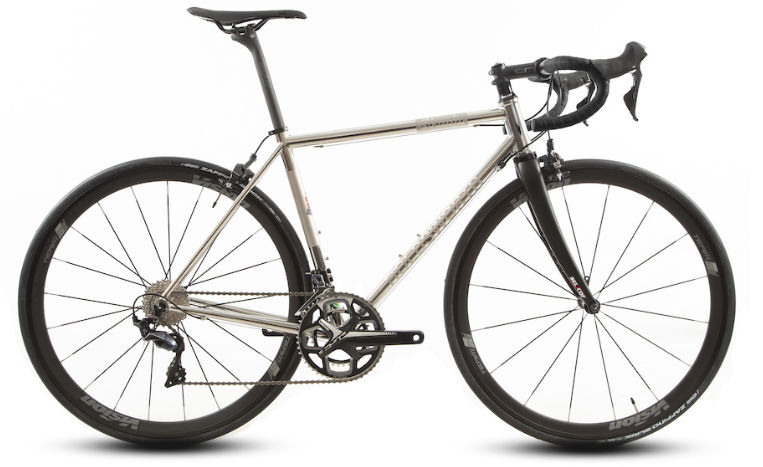

2017 Holdsworth Strada 953 geometry
Full frame geometry for the 2017 Holdsworth Strada 953, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| 48 | 509 | 384 | 74 | 72 | 115 | 480 | 59 | 408 |
| 50 | 525 | 389 | 73 | 72.5 | 130 | 500 | 59 | 411 |
| 52 | 546 | 403 | 73 | 73 | 150 | 520 | 59 | 412 |
| 54 | 565 | 411 | 72.5 | 73 | 170 | 540 | 59 | 413 |
All measurements in millimetres unless marked (°) for angles.
