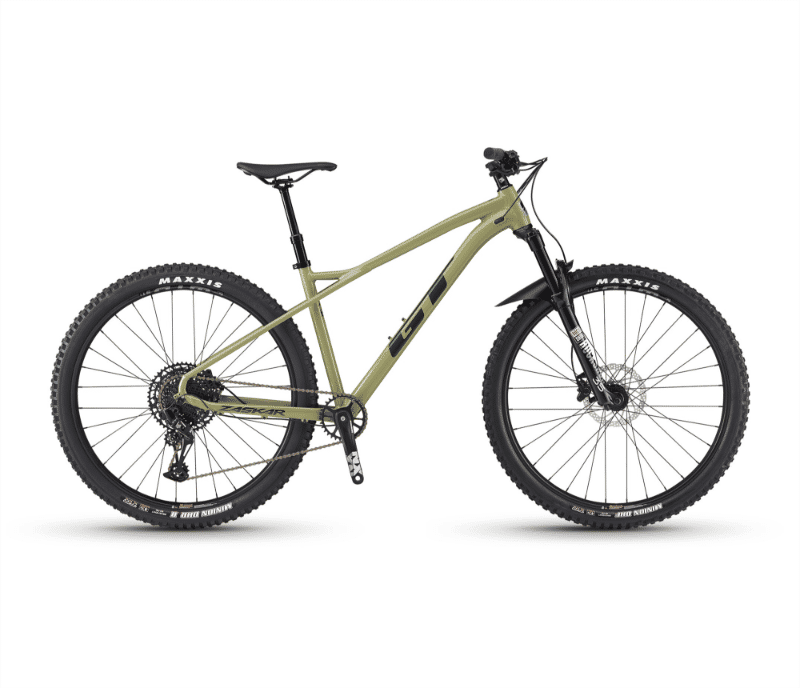

2026 GT Zaskar LT geometry
Full frame geometry for the 2026 GT Zaskar LT, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SM | 624 | 425 | 75 | 66 | 105 | 593 | 400 | 732 | 55 | 737 | 450 | 1181 | 51 | 112 |
| MD | 634 | 445 | 75 | 66 | 115 | 615 | 440 | 763 | 55 | 761 | 450 | 1205 | 51 | 112 |
| LG | 643 | 465 | 75 | 66 | 125 | 637 | 480 | 794 | 55 | 785 | 450 | 1229 | 51 | 112 |
| XL | 652 | 485 | 75 | 66 | 135 | 660 | 520 | 825 | 55 | 809 | 450 | 1253 | 51 | 112 |
All measurements in millimetres unless marked (°) for angles.
