2026 GT · MDB

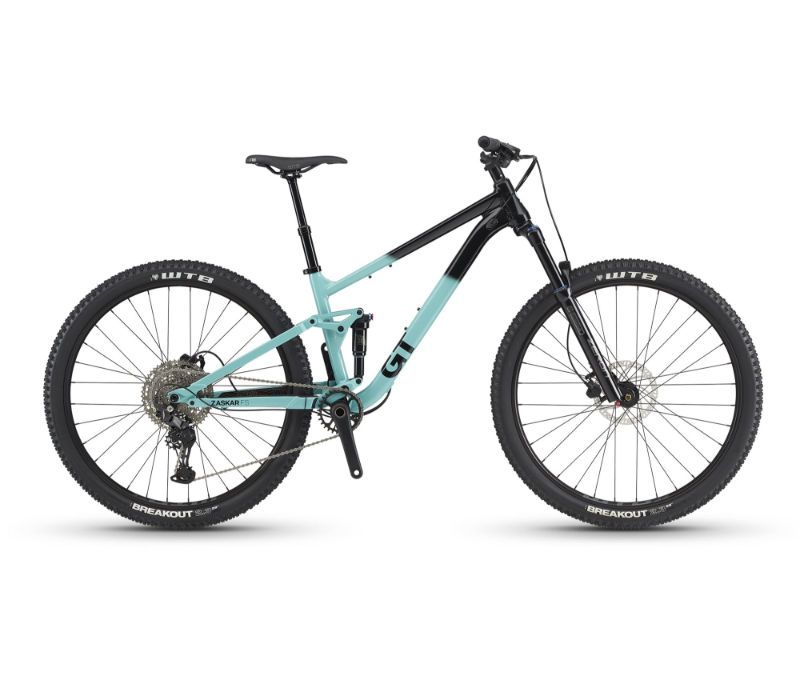

2026 GT Zaskar FS geometry
Full frame geometry for the 2026 GT Zaskar FS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SM | 606 | 422 | 78 | 65 | 110 | 551 | 360 | 720 | 36 | 745 | 450 | 1192 | 51 | 119 |
| MD | 615 | 447 | 78 | 65 | 120 | 578 | 400 | 740 | 36 | 774 | 450 | 1222 | 51 | 119 |
| LG | 624 | 472 | 78 | 65 | 130 | 605 | 450 | 750 | 36 | 804 | 450 | 1252 | 51 | 119 |
| XL | 633 | 508 | 78 | 65 | 140 | 642 | 490 | 760 | 36 | 843 | 450 | 1291 | 51 | 119 |
All measurements in millimetres unless marked (°) for angles.
