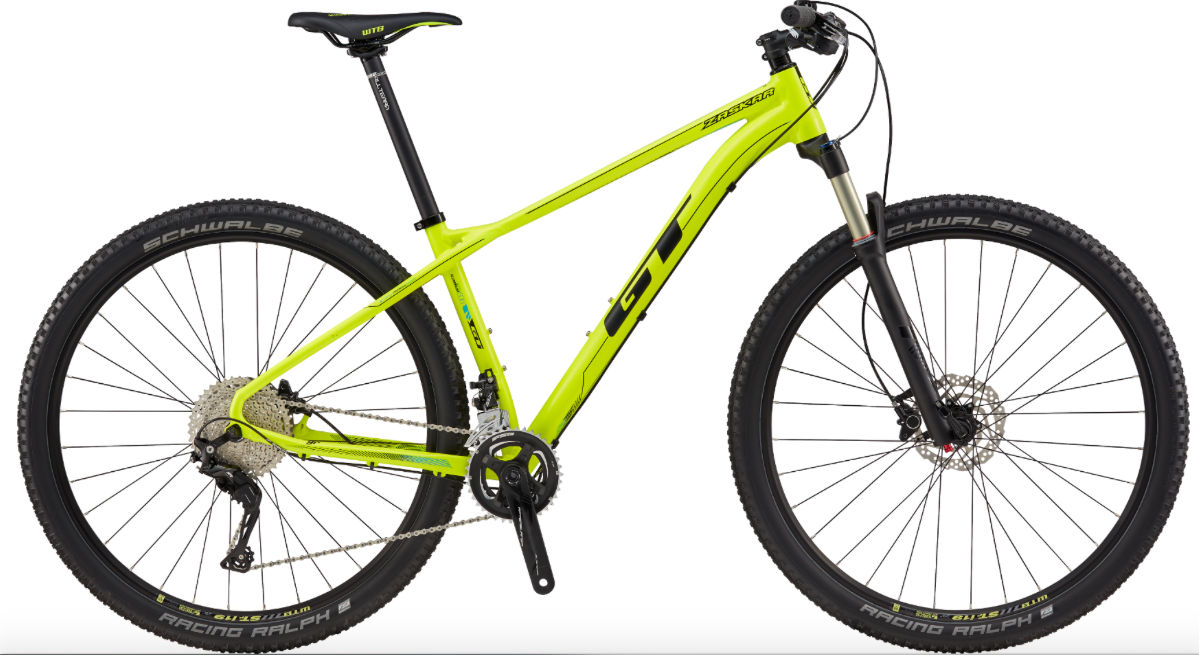

2017 GT Zaskar 9r geometry
Full frame geometry for the 2017 GT Zaskar 9r, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 604 | 422 | 73 | 69.5 | 90 | 607 | 380 | 717 | 65 | 681 | 440 | 1114 | 51 |
| XS | 604 | 402 | 73 | 69.5 | 90 | 587 | 355 | 707 | 65 | 662 | 440 | 1094 | 51 |
| L | 628 | 462 | 73 | 69.5 | 115 | 654 | 485 | 789 | 65 | 730 | 440 | 1162 | 51 |
| M | 628 | 442 | 73 | 69.5 | 115 | 634 | 430 | 752 | 65 | 710 | 440 | 1142 | 51 |
| XL | 633 | 482 | 73 | 69.5 | 120 | 675 | 540 | 822 | 65 | 751 | 440 | 1183 | 51 |
All measurements in millimetres unless marked (°) for angles.
