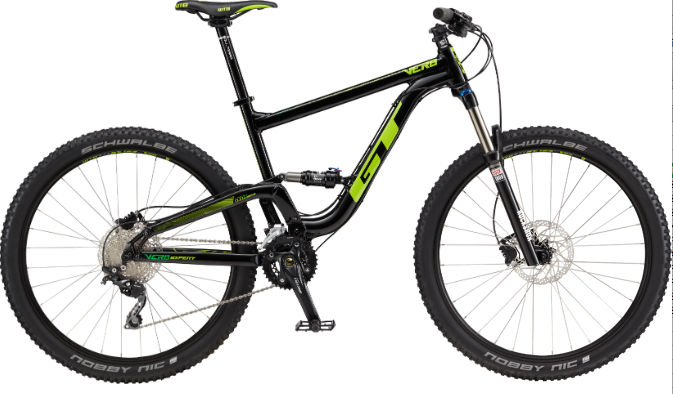

2017 GT Verb geometry
Full frame geometry for the 2017 GT Verb, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 570 | 417 | 73.5 | 68.5 | 90 | 550 | 400 | 731 | 15 | 644 | 440 | 1081 | 42 |
| S | 580 | 432 | 73.5 | 68.5 | 90 | 565 | 430 | 737 | 15 | 659 | 440 | 1096 | 42 |
| M | 588 | 450 | 73.5 | 68.5 | 103 | 601 | 460 | 744 | 15 | 688 | 440 | 1125 | 42 |
| L | 597 | 469 | 73.5 | 68.5 | 119 | 635 | 490 | 751 | 15 | 718 | 440 | 1156 | 42 |
| XL | 612 | 485 | 73.5 | 68.5 | 135 | 655 | 520 | 793 | 15 | 747 | 440 | 1184 | 42 |
All measurements in millimetres unless marked (°) for angles.
