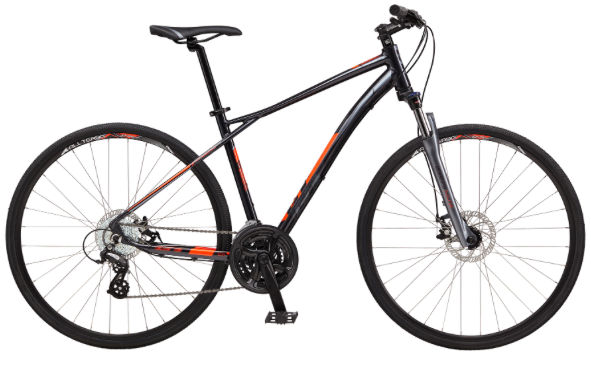

2017 GT Transeo geometry
Full frame geometry for the 2017 GT Transeo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 602 | 372 | 74 | 70.5 | 110 | 545 | 380 | 681 | 72 | 617 | 450 | 1057 | 50 |
| S | 613 | 384 | 74 | 71 | 120 | 560 | 420 | 717 | 72 | 628 | 450 | 1068 | 50 |
| M | 627 | 395 | 74 | 72 | 130 | 575 | 470 | 760 | 72 | 632 | 450 | 1072 | 50 |
| L | 636 | 407 | 73.5 | 72 | 140 | 590 | 520 | 801 | 72 | 647 | 450 | 1088 | 50 |
| XL | 646 | 408 | 73.5 | 72 | 150 | 600 | 570 | 841 | 72 | 652 | 450 | 1092 | 50 |
| XXL | 655 | 415 | 73.5 | 72 | 160 | 610 | 620 | 880 | 72 | 662 | 450 | 1102 | 50 |
All measurements in millimetres unless marked (°) for angles.
