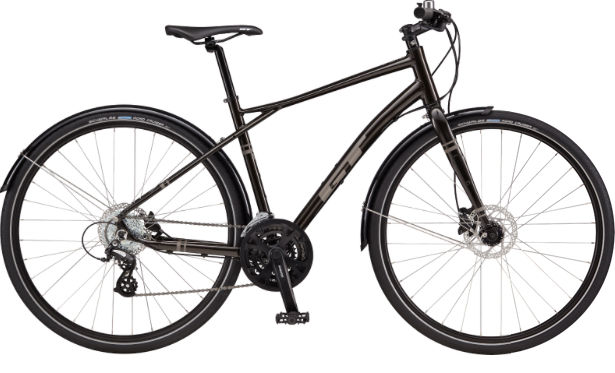

2017 GT Traffic geometry
Full frame geometry for the 2017 GT Traffic, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 574 | 390 | 74 | 71 | 140 | 555 | 365 | 690 | 59 | 618 | 465 | 1077 | 45 |
| XS | 585 | 392 | 74 | 71.5 | 150 | 560 | 415 | 728 | 59 | 618 | 465 | 1077 | 45 |
| S | 595 | 389 | 73.5 | 71.5 | 160 | 565 | 465 | 766 | 59 | 618 | 465 | 1077 | 45 |
| M | 606 | 400 | 73.5 | 72 | 170 | 580 | 515 | 801 | 59 | 628 | 465 | 1087 | 45 |
| L | 616 | 402 | 73 | 72 | 180 | 590 | 565 | 836 | 59 | 633 | 465 | 1091 | 45 |
| XL | 625 | 409 | 73 | 72 | 190 | 600 | 615 | 869 | 59 | 643 | 465 | 1101 | 45 |
All measurements in millimetres unless marked (°) for angles.
