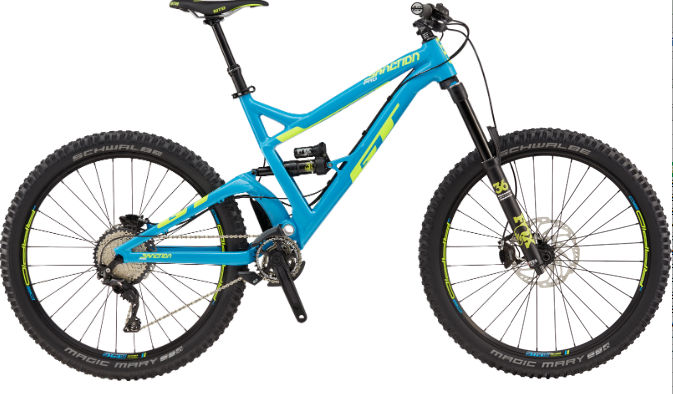

2017 GT Sanction geometry
Full frame geometry for the 2017 GT Sanction, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 591 | 411 | 74.5 | 66 | 105 | 575 | 450 | 743 | 9 | 718 | 439 | 1157 | 44 |
| M | 600 | 435 | 74.5 | 66 | 115 | 602 | 470 | 744 | 9 | 747 | 439 | 1186 | 44 |
| L | 610 | 461 | 74.5 | 66 | 125 | 630 | 485 | 744 | 9 | 777 | 439 | 1215 | 44 |
| XL | 619 | 485 | 74.5 | 66 | 135 | 657 | 510 | 745 | 9 | 805 | 439 | 1244 | 44 |
All measurements in millimetres unless marked (°) for angles.
